DCX ICP40
Dry Cooler
A 40kW of heat transfer capacity, integrated pump and heat exchanger. The perfect match for a single DCX PRO 9 immersion tank.
A 40kW of heat transfer capacity, integrated pump and heat exchanger. The perfect match for a single DCX PRO 9 immersion tank.
Delivers up to 40 kW of heat transfer, ideal for powering a single PRO 9 tank.

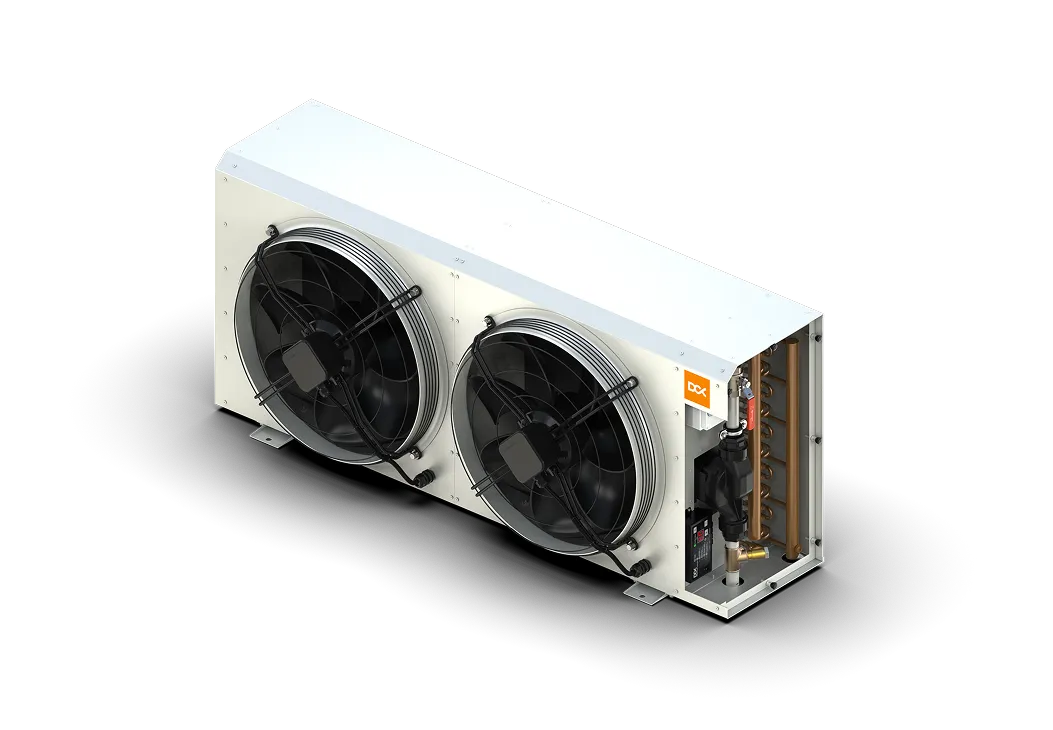

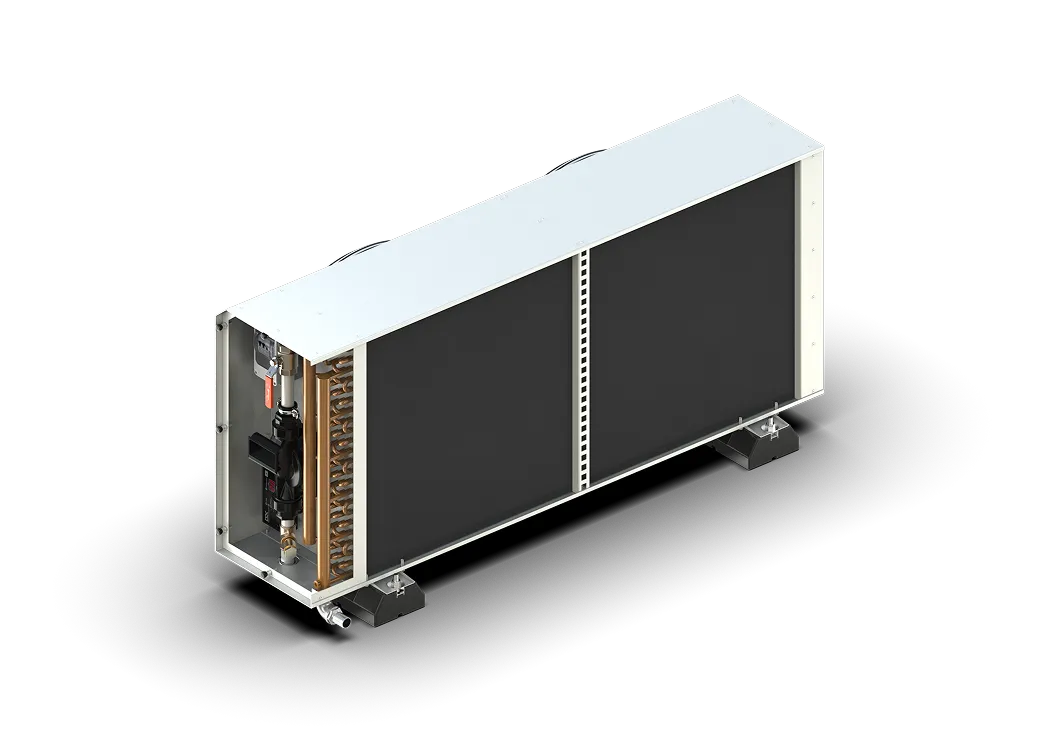

All-in-one design with built-in pump and fan for simple installation and reliable operation.
Pair the ICP 40 with the PRO 9 tank to recover heat and maximize the efficiency of your mining setup.
Provides 40 kW at 35 °C and 45 kW at 25 °C - the cooler the ambient, the higher the output.

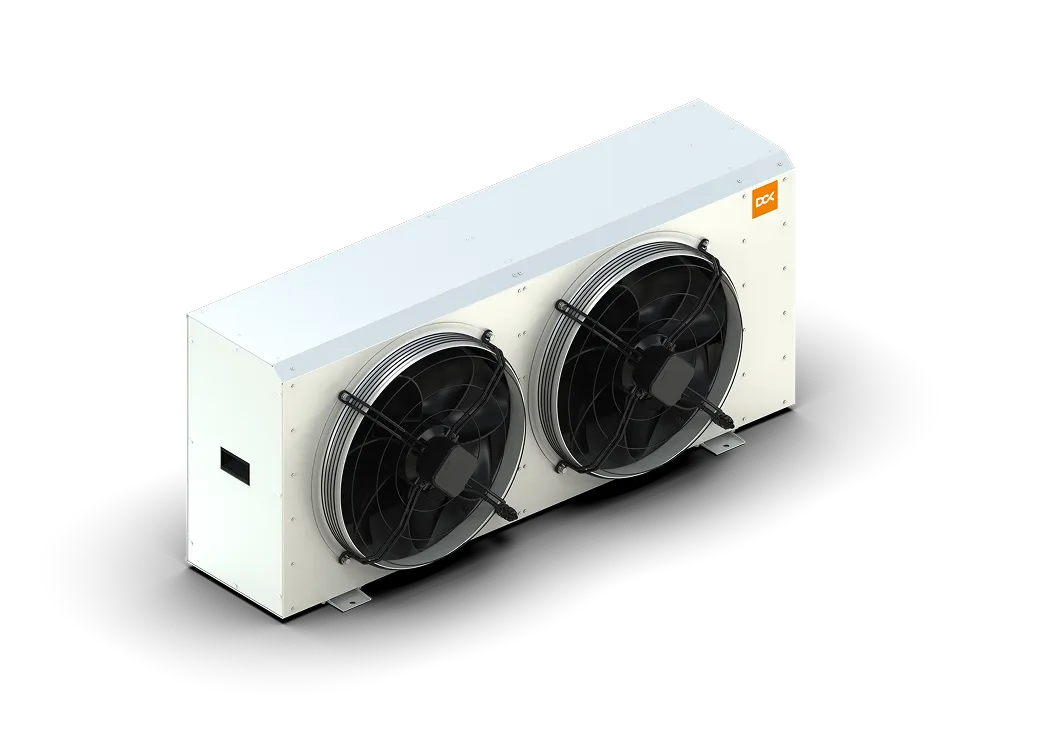

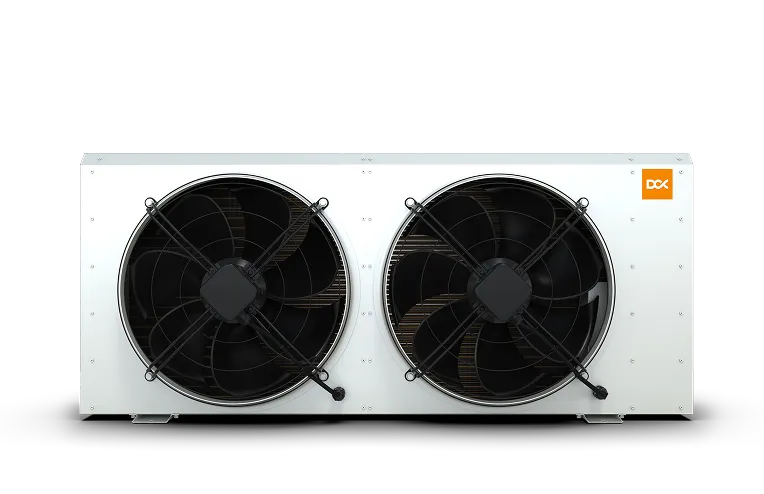

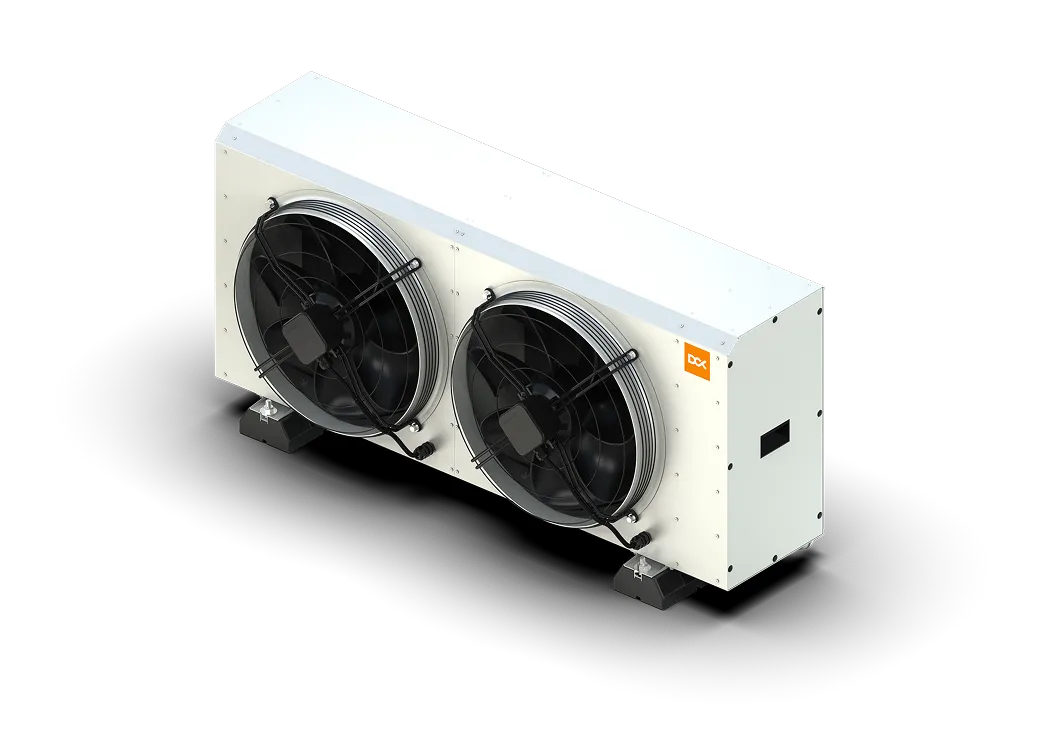

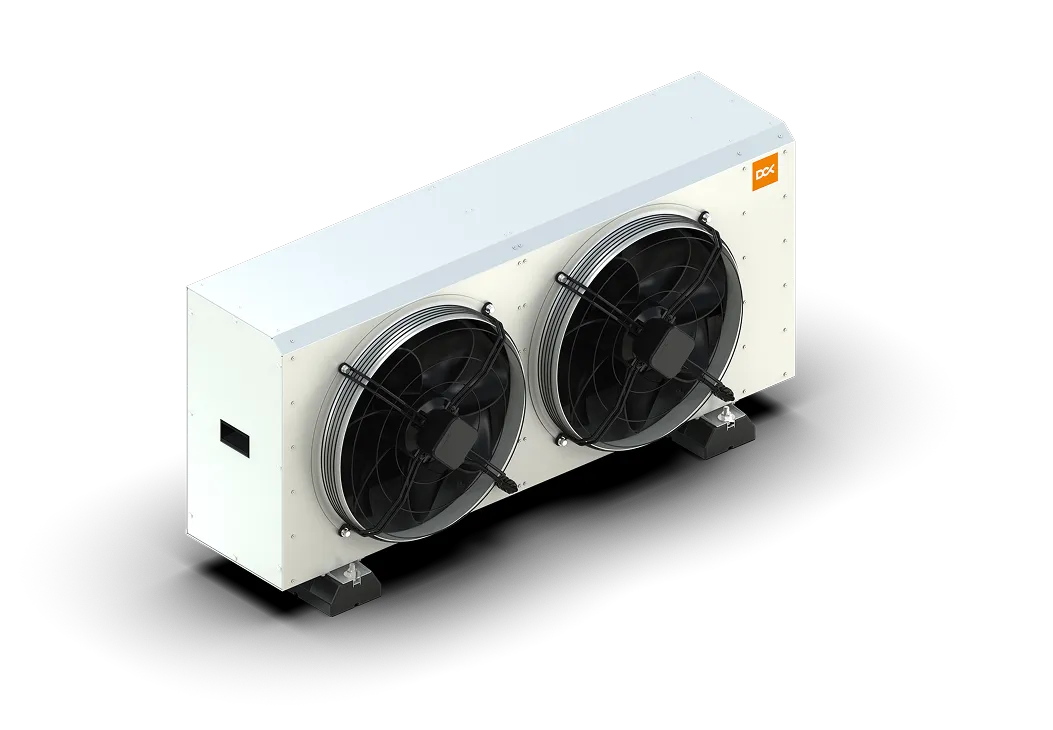

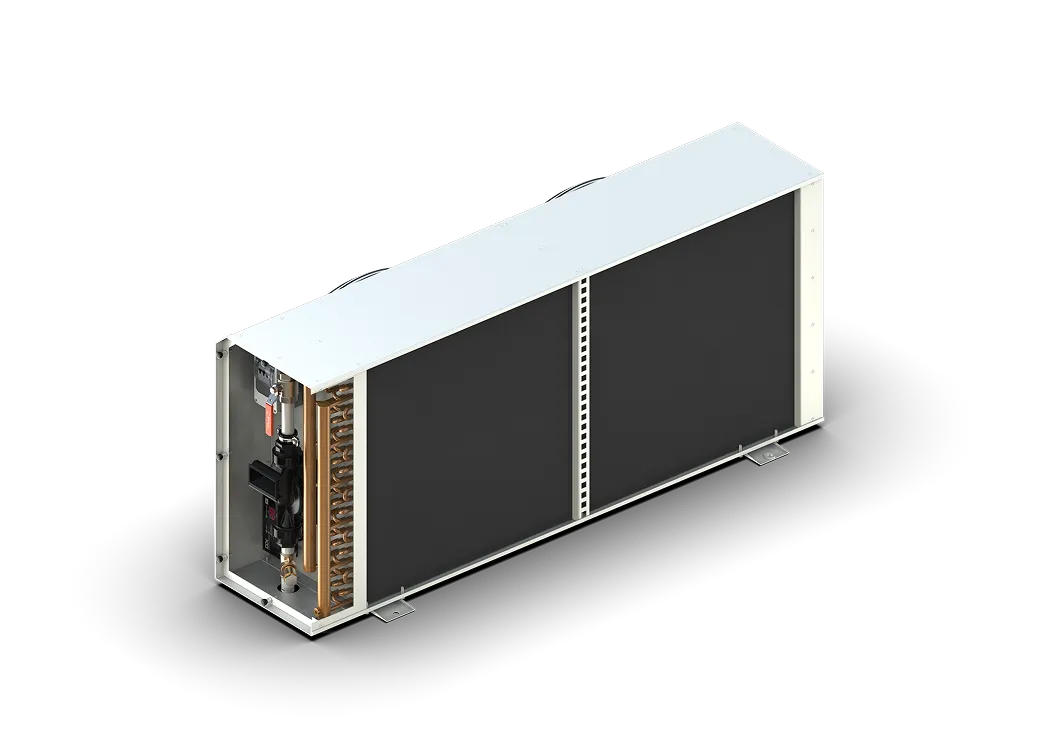

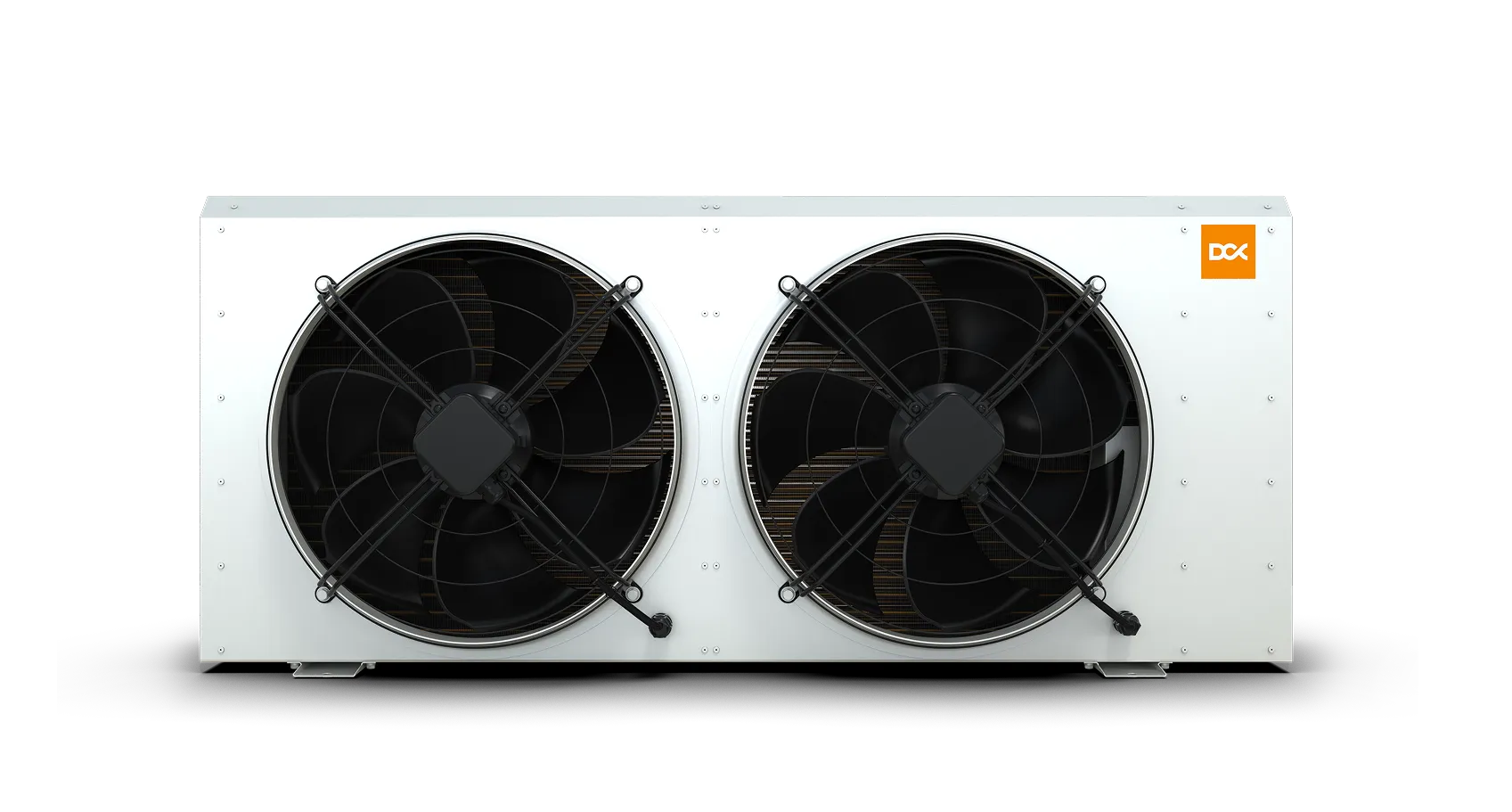

Designed for single immersion tanks, the ICP40 features an integrated continuous-duty pump and adaptive fan control in a compact 140 × 70 × 40 cm enclosure. It delivers over 40 kW of heat transfer capacity at 35°C ambient (up to 50 kW at 25°C). The dual 500 mm fan module adjusts automatically to cooling demand, minimizing noise and energy use. Standard operation is 60–62 dB, with optional high-performance low-noise fans rated at 50–55 dB. Power consumption ranges from 400 W on average to 600 W at peak load.
Application
Single Immersion Mining Enclosure (8xS19 | 12 x M30/M50 Whatsminer)
Cooling capacity
(Ambient temp=35°C)
40 kW
Cooling capacity
(Ambient temp=25°C)
45kW
Dimensions
1400(W) x 460(D) x 715(H) mm
Fans
2 x 500 mm
Noise level [dB(A)]
58-62 dB(A)
Max power consumption
1.5 kW
Power Standard
230-240V/1Ph/50/60 Hz
Fittings
1" / DN25
Fluid temperature In / Out
60 / 40 °C
Transport weight
80 kg | 176 lb
Nominal volume flow
1.7 mᶾ/hf
Pressure drop
0.34 bar
This deployment showcases the DCX ICP40 Dry Cooler operating in a hybrid configuration for both heat rejection and heat reuse. The cooler is connected to a single immersion enclosure via insulated piping, forming a closed-loop circuit with an integrated pump that circulates the heated dielectric fluid.
What distinguishes this installation is its smart heat recovery strategy: instead of rejecting all thermal energy to the ambient air, part of the heat is repurposed to warm a swimming pool. In moderate climates or seasonal applications, this approach not only cools the hardware efficiently but also reduces operating costs by making productive use of the waste heat.
