DCX 2MW
Dry Cooler
Revolutionary solution that empowers you to operate efficiently and sustainably with exceptional cooling capacity and unparalleled reliability.
Revolutionary solution that empowers you to operate efficiently and sustainably with exceptional cooling capacity and unparalleled reliability.
Host 8 Antminers S21, Canaan Avalon 1566i, or any other similar sized miner for maximum crypto yield.
Up to 40kW of cooling capacity per enclosure and up to 120 kW of cooling per rack.
With only 1 m² needed for each tank or rack system, it is one of the most scalable solutions on the market.
Equipped with robust industrial heat exchanger, DCX PRO 9 always keeps your operation cool and efficient.

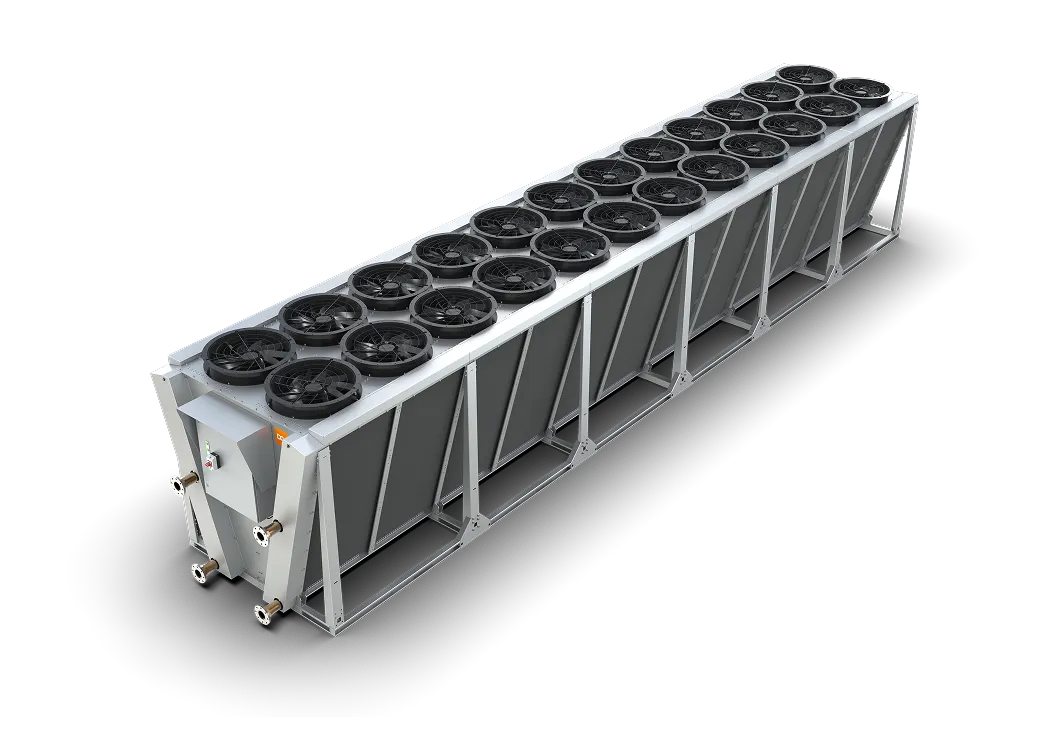

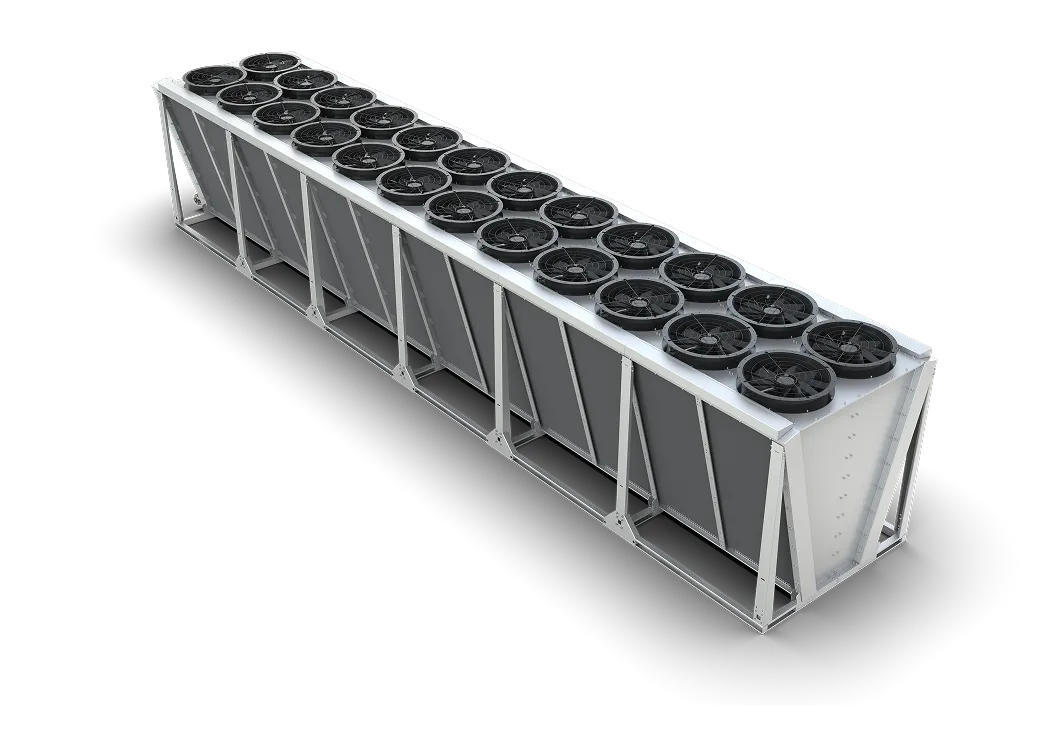

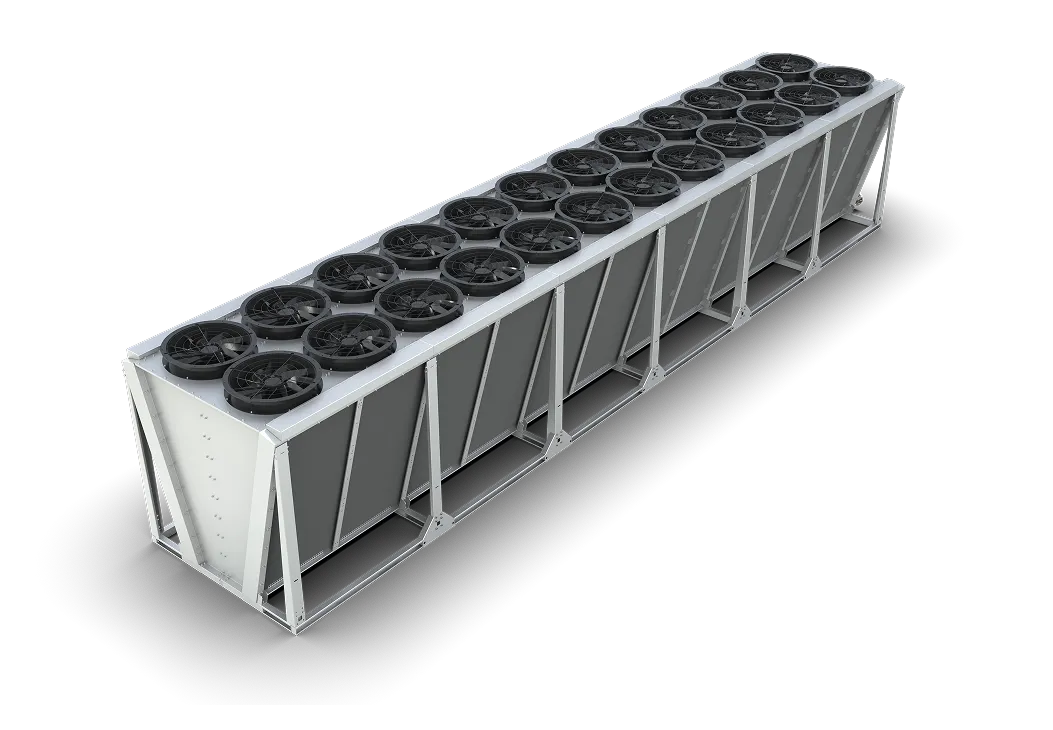

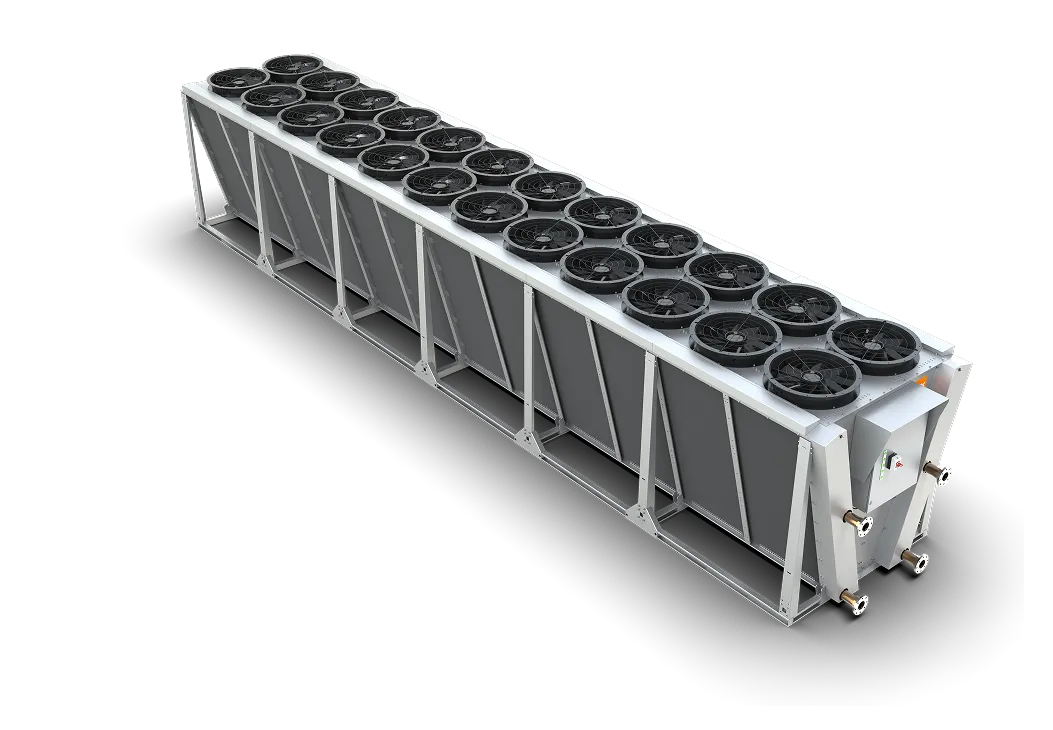

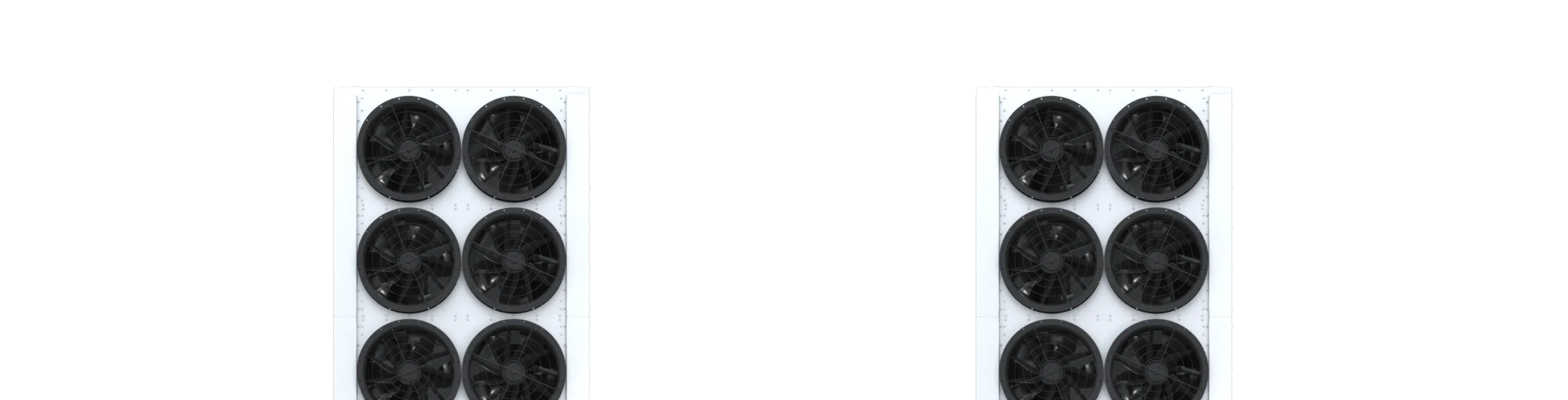

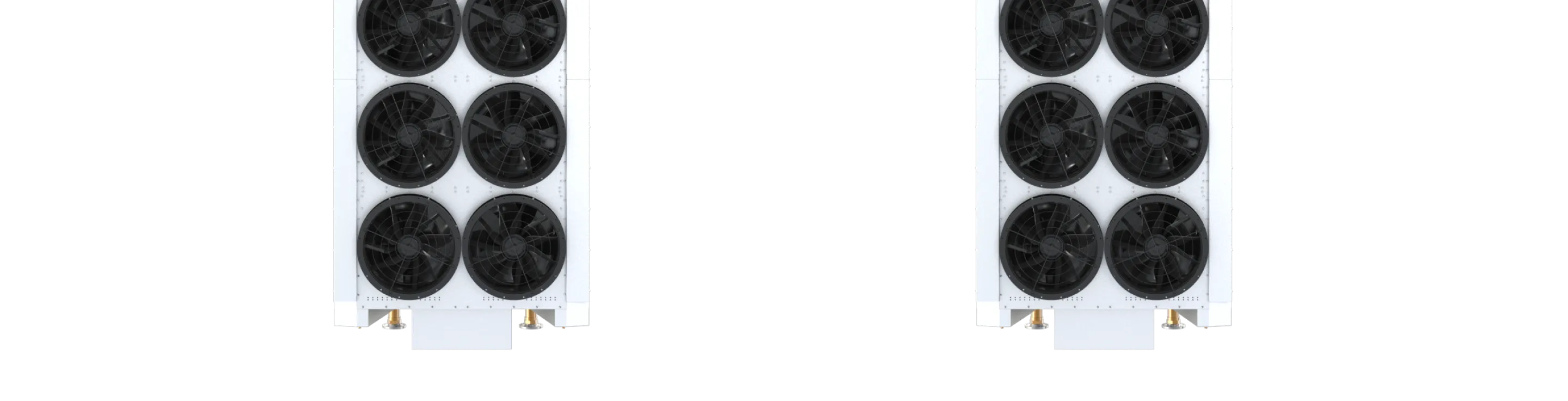

The DCX 2 MW Dry Cooler is a high-performance, space-efficient solution built for demanding immersion cooling deployments. Engineered to deliver up to 2 MW of heat rejection at 35°C (95°F) ambient air, it ensures stable, reliable cooling even under extreme workloads. Designed for seamless integration with a variety of immersion systems, it offers a turnkey, scalable solution for large-scale, heat-intensive operations.
Application

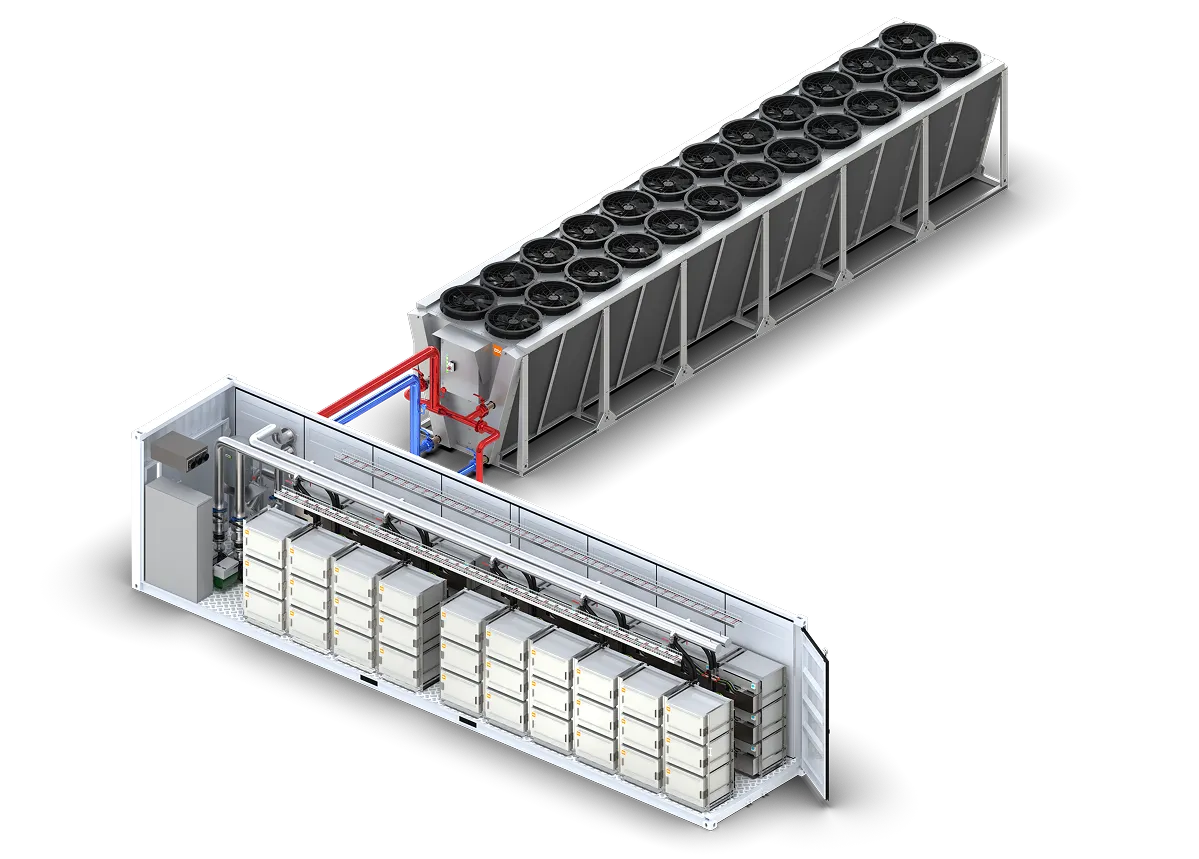

Immersion od Direct Chip cooling systems heat rejection
Cooling capacity
(Ambient temp=35°C)
2000 kW
Dimensions
12000(W) x 2580(D) x 2390(H) mm
Fans

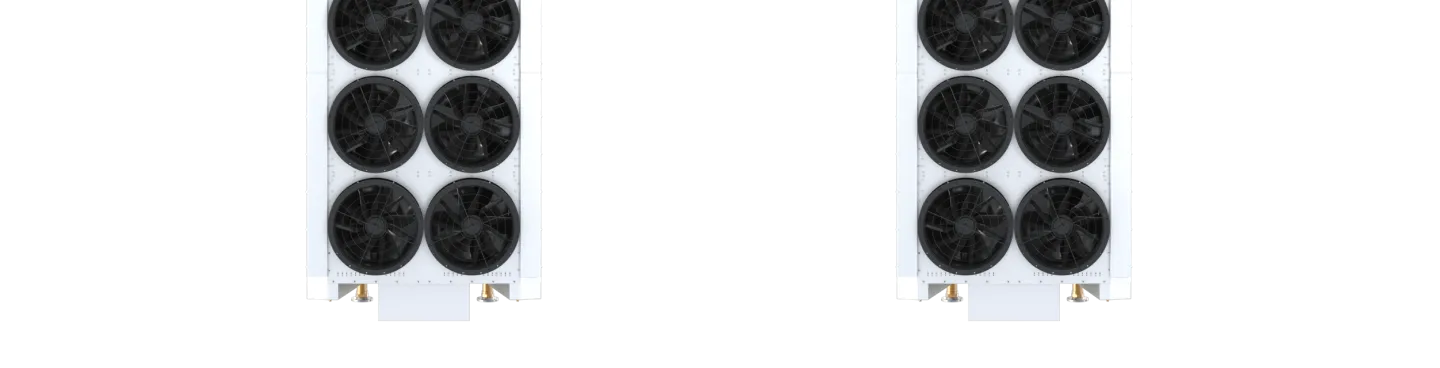

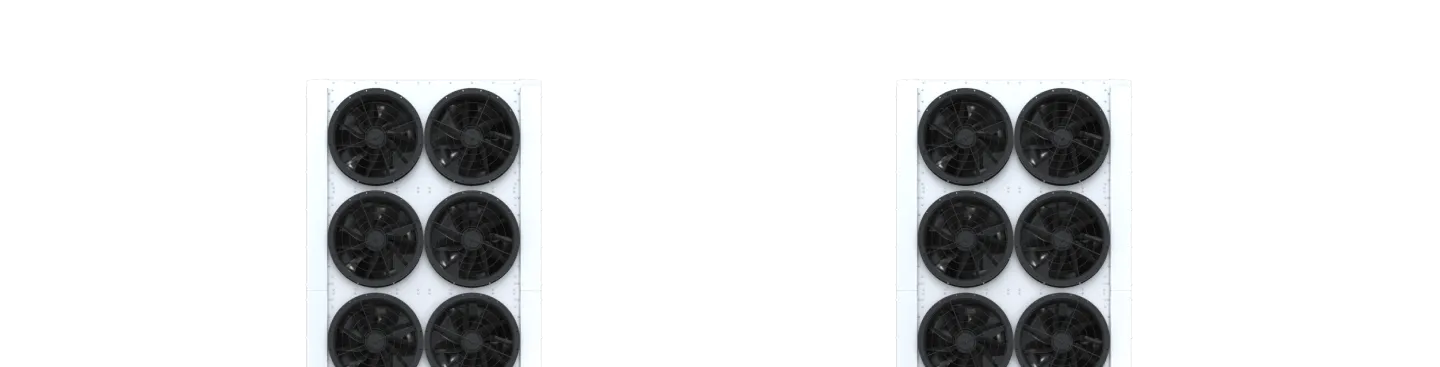

24 x 800 mm
Max power consumption
38.4 kW
Power Standard
400V/3Ph/50hz

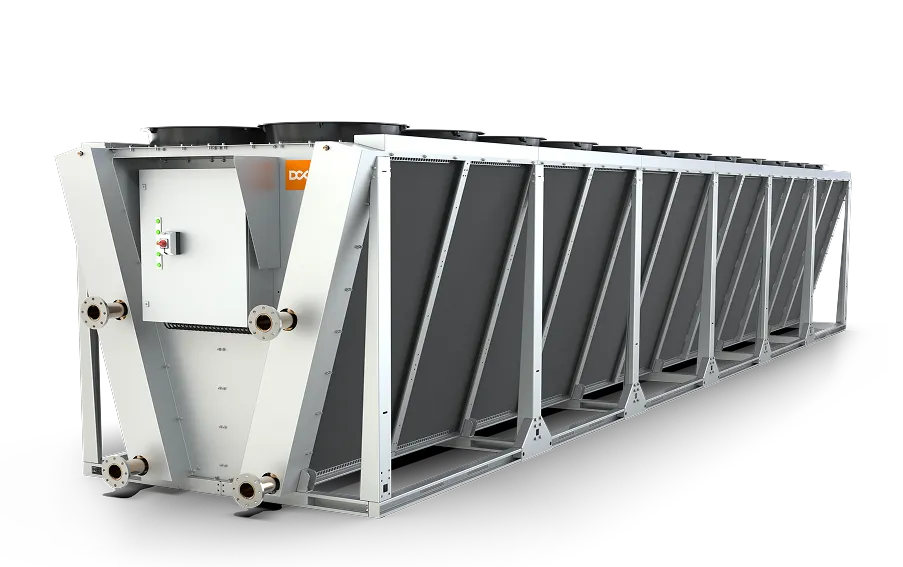

Fittings
4" / DN100
Fluid temperature In / Out
60 / 40 °C
Nominal volume flow
43.4 mᶾ/h
Pressure drop
0.46 bar
Designed to handle medium and large-scale deployments while occupying no more than a single square meter per system. It is the ultimate solution for mining farms and high-density data centers looking to boost productivity and reduce costs.
