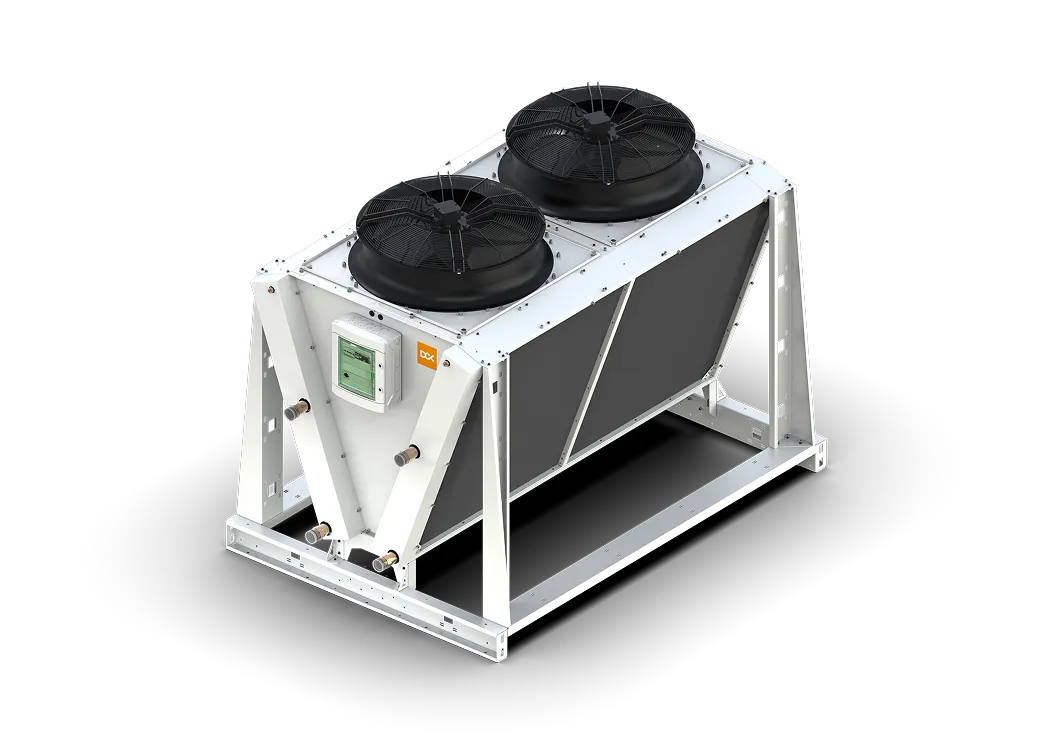

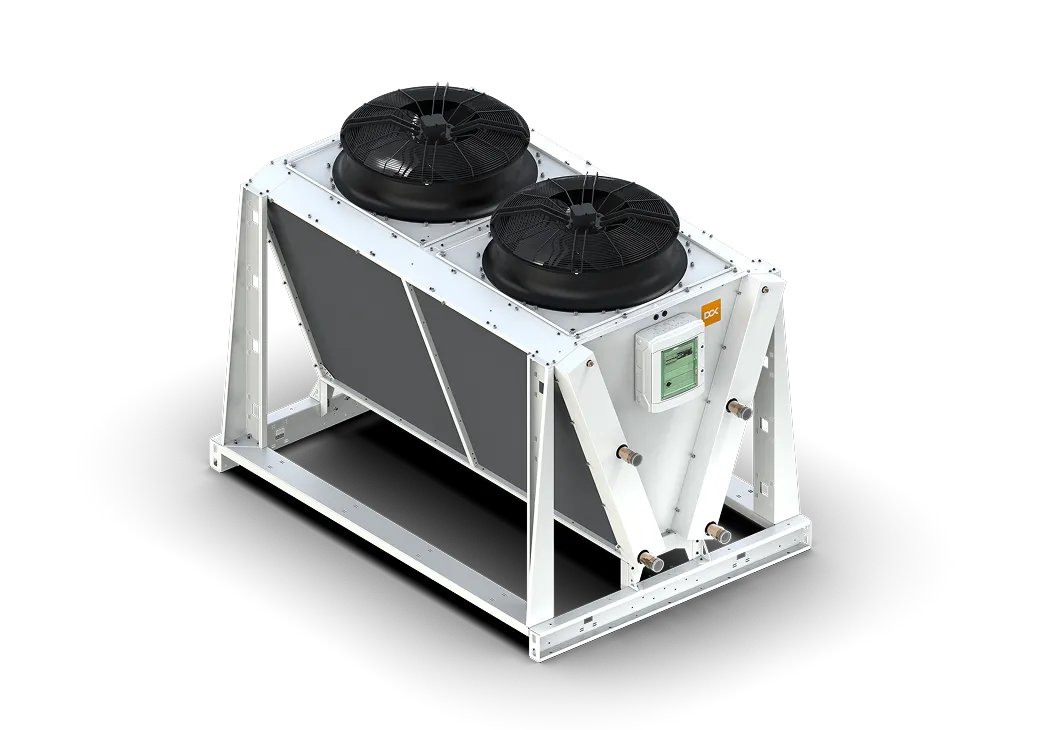

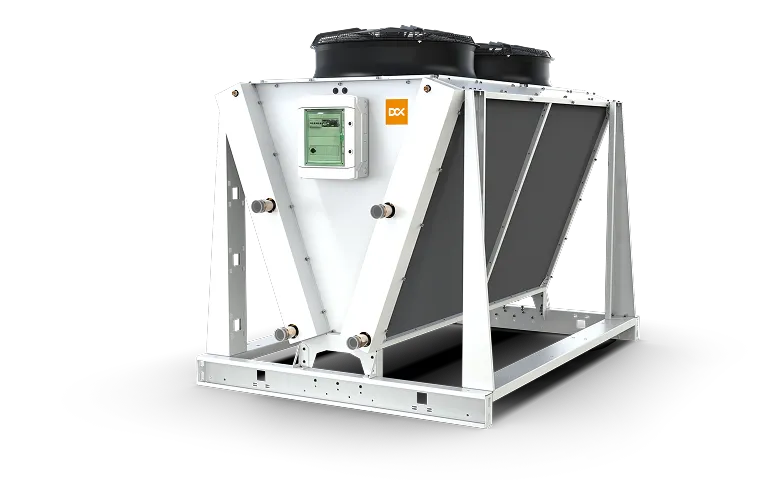

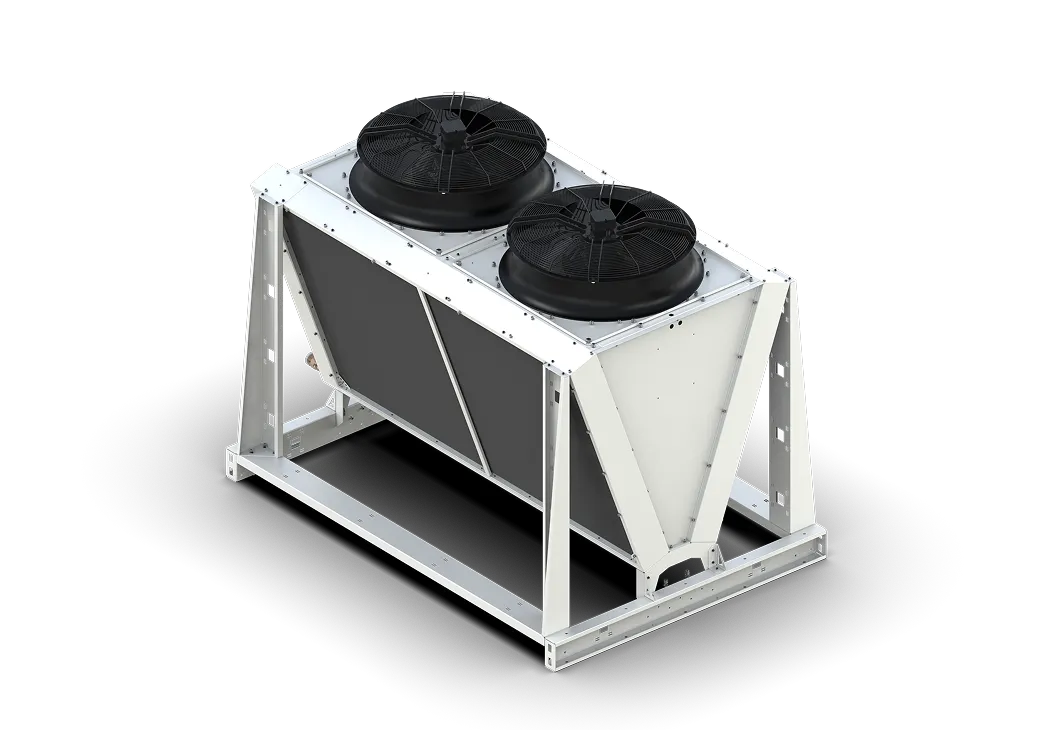

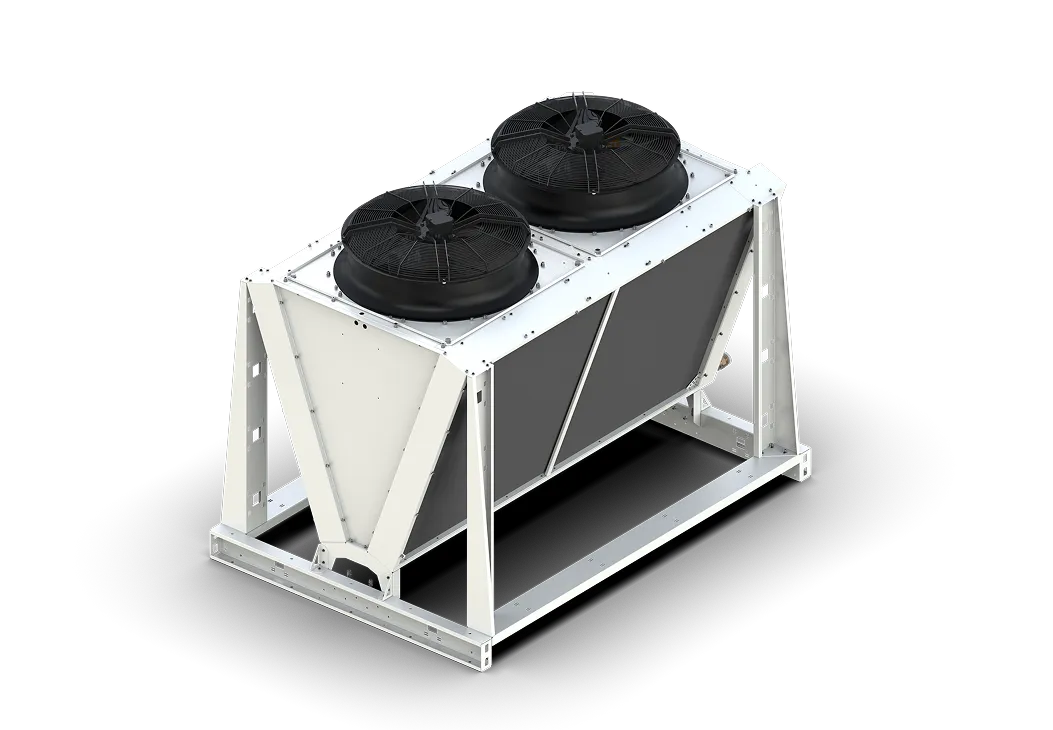

DCX 240kW
Dry Cooler
Advanced air-based cooling technology to deliver exceptional heat transfer capacity, optimizing your data center operations while maximizing space efficiency.
Advanced air-based cooling technology to deliver exceptional heat transfer capacity, optimizing your data center operations while maximizing space efficiency.
Over 240 kW of heat transfer capacity in 35°C ambient conditions.
With a 200 m2 heat exchange area and powerful fans, it effectively dissipates heat.
Eliminates the need for water, minimizing the environmental footprint.
Moderate mode that uses up to 40% less energy for everyday operations.
Experience a new era of thermal management for your immersion racks with the revolutionary DCX 240 kW Dry Cooler. This innovative solution utilizes advanced air-based cooling technology to provide exceptional heat transfer capacity, optimizing your data center operations while maximizing space efficiency. The unit delivers 240 kW of heat transfer at 35°C ambient, increasing to 280 kW at 25°C, ensuring stable performance across various environmental conditions. An extensive heat exchange surface ensures efficient heat dissipation, promoting optimal server performance and longevity. The system features two high-efficiency 800 mm fans, operating within a 58-72 dB(A) noise range to deliver powerful, consistent airflow across the exchanger. Its compact size of 210 x 160 x 160 cm allows flexible placement options. This dry cooler supports both high-performance mode (up to 3.6 kW maximum power consumption) and energy-saving operation, enabling substantial reductions in operational costs during daily workloads.
Application
Immersion od Direct Chip cooling systems heat rejection
Cooling capacity
(Ambient temp=35°C)
240 kW
Cooling capacity
(Ambient temp=25°C)
280 kW
Dimensions
2100(W) x 1600(D) x 1600(H) mm
Fans
2 x 800 mm
Noise level [dB(A)]
58-72 dB(A)
Max power consumption
3.6 kW
Power Standard
400V/3Ph/50hz/1.4-0.9A
Fittings
2" / DN50 or 3" / DN80
Fluid temperature In / Out
60 / 40 °C
Transport weight
800 kg | 1764 lb
Nominal volume flow
10.3 mᶾ/hf
Pressure drop
0.37 bar
This deployment showcases the DCX 240 kW Dry Cooler integrated into a high-capacity immersion cooling system. Installed outdoors, the unit is connected to indoor immersion tanks via insulated closed-loop piping, which ensures efficient heat transfer while minimizing energy losses and protecting the coolant from environmental exposure.
The dry cooler serves as the final heat-rejection stage, transferring heat from the dielectric fluid to ambient air without water or active refrigeration. Its rugged, weather-proof design and fan-driven airflow ensure stable outdoor performance under sustained high compute loads.
