..to complete
rack system
Rack system with 54 miners and + 70kW capacity. Expansion for Universal Immersion Mining Enclosure and building block for container solutions.
Immersion liquid cooling system
for crypto mining operators.
Reliable and affordable liquid cooling solution providing energy savings, unparallel hashrate increase and complete noise, dust and fire protection.
All-steel & fits more miners
We deliver large, all steel enclosures and industrial grade hydraulic components. It’s investment for years. No small & cheap plastic tanks or pvc pipes.
– 30% energy, + 60% Hashrate
Overclocking and fine tuning with custom firmware effects from 40% to 60% more hashrate. No fans in facility or miners results in less energy wasted.
Safe & easy to install
Designed with simplicity and safe operation in mind. System deployment is as easy as assembling an IKEA kit. We provide full support for any scale.
Noiseless Hassle-free Mining
Immersion in the liquid fully protects from temperature, humidity, dust and vibration or fire. No fans = no noise, more profit, less downtime & less maintenance.

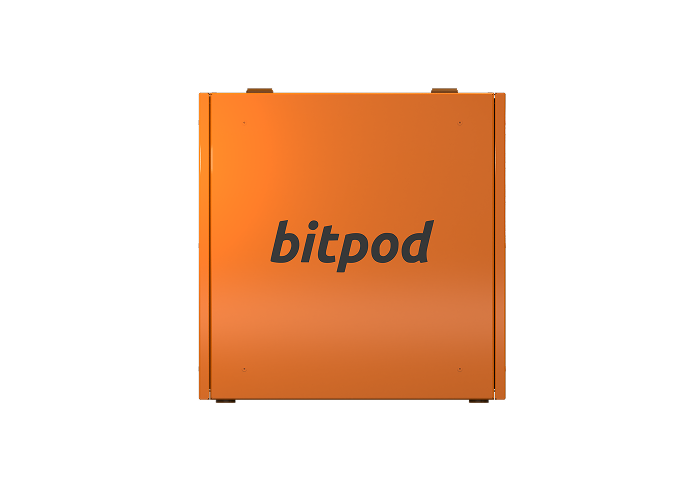

Immersion Mining Enclosure
All steel, only plug & play complete mining system on the market. HODLs up to 6 mining rigs with 12 gpu’s each (total 72), or 25 standard S9/G32-500 asic miners, or 8 x S17 / S19 type miners.
Up to 72 GPUs
6 mining rigs with 12 gpu’s each to total number of 72 GPU’s
Fits 18 (!) miners
fits 25 standard S9 /G32-500 single stack miners
+24kW Heat Transfer
Standard 2L/min flow can transfer easily +24kW
NOW ONLY €1241
or $1384
€1660 $1850 25% less
Single Immersion Mining Enclosure with hydraulic fittings, 30kW plate heat exchanger and 38lpm continuous duty pump (22W) to connect to home/facility heating. Does not contain dielectric fluid or dry cooler which are sold separately.
WE SHIP WORLDWIDE
All steel, industrial grade, large immersion enclosure. Building block for rack and container systems. Universal Immersion Mining Enclosure allows for efficient heat exchange vectoring the flow of proprietary engineered liquid through the GPU’s, mainboards, Asic miners and power supplies. Then hot 60C/140F fluid is directed to conformal outflow chamber to prevent of coolant mixing and to enable best possible heat extraction.
Enclosure is equipped with two high flow couplings that guarantee high flow of heat transfer fluid. In any configuration Immersion Mining Enclosure removes effectively 100% of usually wasted heat and allows for virtually silent mining in any place with 70x60x60 space. Closed lid allows to safely transport the system to convenient location with low power cost. We will also deliver custom amount of dielectric fluid for the desired length of NBR tubing, so you will be able to locate heat exchanger in most convenient area. Durable, spacious, not small or plastic tanks.
Everything is pre-assembled. You just need to unpack / position / connect, fill it and you are ready to start your operation. Universal Immersion Mining Enclosure Bundle consists of:
- Universal Immersion Mining Enclosure with cover / spacing crate and outflow chamber baffle.
- Continuous Duty Pumping subsystem (pump /tubing /hydraulics hardware/thermal controller driver/electric connection)

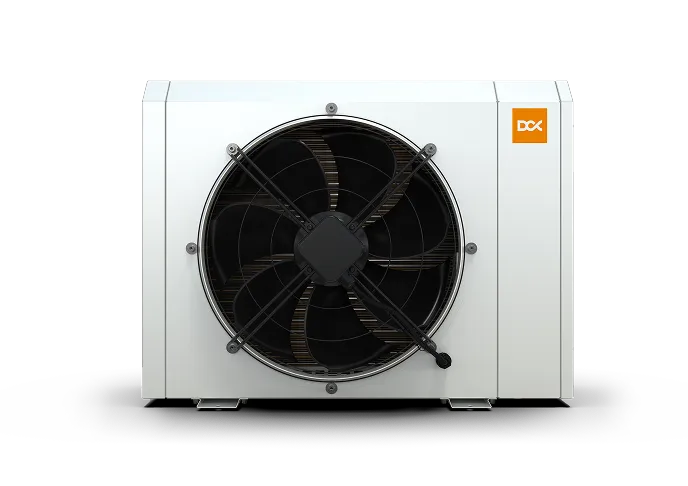

- Liquid to air heat exchanger / dry cooler with industrial-grade fans
- 10m tubing and electric cable to connect UNI Enclosure with the heat exchanger.
- 150L of ThermaSafe Engineered Heat Transfer Fluid
Installation examples
All our systems are built for easy scale from single enclosure, to multiple racks. We also took into account flexibility of the solution. Our enclosures may be installed with a simple “Ikea style” setup or connected to facility heating / cooling loop at your home, garage, workshop or business. Please see simplified drawings of possible installations setups.
A) Single Immersion Mining Enclosure and single loop system.
Designed for ease of use and simplicity. Immersion is easy! You get one enclosure, dry cooler and 10 meters of tubing. The setup is quick and does not require any special skills or professional knowledge.
The enclosure should be placed inside of your workshop / garage or facility, and dry cooler – outside so it has access to the fresh air. We use a large 24-30kW rated dry cooler with dual fans and temperature controller. In regards to the enclosure, you need to take into account that it will be quite heavy when filled with hardware and heat transfer fluid so it should be placed on the ground.
We sell those systems without or with 150L of Heat Transfer fluid. Miners should be placed tightly in Immersion Mining Enclosure, gaps between the miners avoided, empty spaces filled with containers so the fluid will be forced to go through the miners or GPU cards and not around.
The whole setup takes just connecting two components with tubing, filling the enclosure with fluid so it goes over the dividing chamber and starting the system. Fans on dry cooler will start when the fluid temperature goes over 40C/104F. Miners should be placed vertically in to the enclosure and fan emulators or custom firmware should be used. That’s it! We will support you on setup and provide video manuals on connecting and starting the system.
DCX Immersion Mining Enclosure Single Loop
B) Universal Immersion Mining Enclosure connected to home heating
The same Immersion Enclosure but delivered with hydraulic fittings, brazed plate heat exchanger and energy-efficient almost silent pump system. If you have facility (home, office, workshop) heating / cooling loop, you can connect our enclosure and reuse the heat from miners. Providing continuous 40-50C /104-122F to supply home installation in cold season.
An ideal solution for colder regions to supply heat to radiators, pool, jacuzzi or floor heating. Still, for hot season you can purchase drycooler which will extract excess heat. The most flexible system you can get and connect.
Ideally connected by local home installations / heating contractor, but it may be also configured by any DIY type person with 1 inch connectors from our plate heat exchanger to home buffer tank.
DCX Immersion Mining Enclosure Dual Loop
C) Same but with optional dry cooler
Dual loop system is an ideal solution for colder regions to supply heat to radiators, pool, jacuzzi or floor heating. Still, for hot season you can purchase dry cooler which will extract excess heat. Dry-cooler cann be connected to the home loop using own auxiliary low-power pump or without, using just facility flow. The most flexible system you can get and connect.
Ideally connected by local home installations / heating contractor, but it may be also configured by any DIY type person with 1 inch connectors from our plate heat exchanger to home buffer tank.
DCX Immersion Mining Enclosure Dual Loop with Drycooler
Capacity
All steel enclosures hold the weight of hardware and fluid and will last for years. They provide biggest capacity and flexibility on the market to accomodate different miners setup, while keeping space saving rack design. This capacity may be also improved with miner retrofitting. Removing miner housing and covers, placing power suppliers outside immersion enclosure, or using custom made or retrofitted hashboards (Canaan miners etc.) will significantly improve density allowing to fit even more miners into single enclosure.
12x Antminer S9 K / SE
Single Stack with integrated PSU
25x Antminer S9
Single Stack with PSU on cable
11x Whatsminer M20s / M30
Single Stack miner with integrated PSU
8x Antminer S15 / S17 / S19 !
Double Stack miner with integrated PSU
15 x 1U Server Miner
Obelisk SC1 Immersion type or any 50cm deep server
8x Double Stack no PSU
8x Innosilicon G32 1800 / Antminer Z11
Investment for years. Large enclosures, big enough to hold 25-35kW, but convenient to fit anywhere or to be stacked in the rack system. Fits up to 8 x S17+ and 11 x M20s with housing modification. Designed to fit different configurations:
-
25x Innosilicon G32-500 / A10/ Antminer S9 / Ebang Ebit E11, any single stack miner no PSU
-
11x Whatsminer M20s/M30 single stack with PSU
-
8x Innosilicon G32 1800 double stack no PSU
-
8x Antminer S17 / S19 double stack with PSU
-
11x Antminer S9k single stack with PSU
-
15x Obelisk SC1 Immersion, miner server

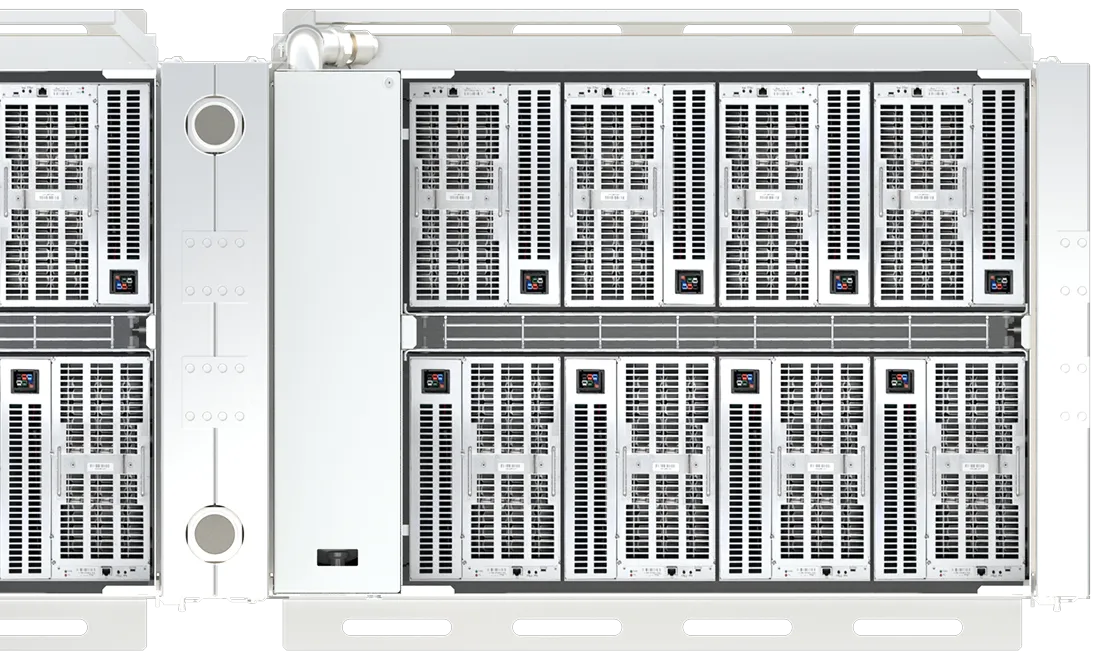

Immersion Mining Rack
Immersion Liquid Cooling Rack System that holds 54 miners delivered with 3 Universal ILC Enclosures and all components. Vertical placement of sliding-out enclosures provides easy maintenance and best density on the market.
3 Immersion Enclosures
3 (standalone) or 4 (container) level vertically installed Uni Enclosures.
up to 54 Asic Miners
From 18 to 54 Asic Miners. From 6 to 18 GPU rigs with 216 GPU’s.
+70kW in 1 meter!
Over 70kW or more in 1 square meter area.
NOW ONLY €5379
or $5977
€8820 $9800 40% less
Rack set contains rack frame, rack sliding table and 3x Immersion Mining Enclosure with hydraulic fittings, 30kW plate heat exchanger and 38lpm continuous duty pumps (22W max) to connect to home / facility heating. Does not contain fluid, or dry cooler which are sold separately.
WE SHIP WORLDWIDE
Immersion Mining Rack System compatible with Universal Immersion Mining Enclosures is a easy way to mine silently in most convenient place with low-cost energy access. This vertical system is designed to solve most of the existing problems in mining industry: special space for mining, energy usage, performance, heat, noise, electronic equipment failures, fire protection etc.
With low 1 sq. meter footprint for 40-70 or more kW capacity, ILC Rack can be placed virtually everywhere regardless of external conditions. Rack system allows for silent mining with active pumps being placed near drycooler outside.
Retractable Immersion Mining Enclosures provides an easy access to mining equipment. ILC Rack is equipped with complete set needed to mine safely: drycoolers, pumping system, tubing, monitoring system, and required amount of ThermaSafe engineered heat transfer fluid. Rack system can be utilised as component of Mobile Mining Container for more scalable mining operation.
Immersion Mining Rack System Bundle consist of:
- Immersion Mining Rack System with dual-loop system or 3 single loops (one enclosure – one dry-cooler)
- 3 Universal Immersion Mining Enclosures with covers / spacing crate and outflow chamber baffles.
- 3x Continuous Duty Pumping subsystem (pump /tubing /hydraulics hardware/PLC driver/electric connection)
- Optionally 3x dry coolers with industrial grade fans
- Complete 10m tubing to connect Immersion Enclosures with facility loop or drycoolers
- 450L of ThermaSafe Engineered Heat Transfer Fluid
Installation examples
All our systems are built for easy scale from a single enclosure, to multiple racks. If you need more than a single enclosure we offer scale-up rack systems. Using Universal Enclosures as building block they occupy 1 sq. meter of space, but provide a huge 24xS17 or 20 M20s density. Those are connected to external larger dry cooler, or facility heating/cooling loop at your home, garage, workshop or business. Please see simplified drawings of possible installations setups.
A) Scale-up: Immersion Rack system
Our rack system is based on Dual loop Universal Immersion Mining Enclosures with custom aluminum frame and table which allows middle enclosures to be slide out from the rack for maintenance. Originally with 3 enclosures but might be stacked to 4 enclosures. This system may be delivered with two types of heat rejection: single enclosure – single loop with dry cooler, or all enclosures connected to facility loop. We recommend the second solution which allows for greater flexibility and scalability.
In scale-up scenario one rack with 3 or more dual loop enclosures connected in series. Each enclosure has own brazed plate heat exchanger and low power, energy-efficient pump. Heat transfer fluid circulates only in enclosures. On the other side, we would use a typical water/glycol heating loop that may reuse the heat for facility purposes or reject the heat to a larger 50-70-100kW dry cooler. Both solutions provide unparalleled density and scalability.
We suggest that such a rack system or dry cooler should be installed by a local contractor which specializes in heating/cooling systems.
DCX Immersion Mining Rack Dual Loop
B) Same but with optional dry cooler
Rack system transfers from 50 to 70kW of heat so it requires larger heat rejection device. We suggest dry cooler as 50-60C fluid can be easily and cost-effectively extracted to air without air conditioning, chillers and water towers. The 50-100kW range dry-cooler will be connected to the home or facility loop using own auxiliary low-power pump.
Dry coolers are flexible and easy to size and may be upgraded to any heat load by adding more modules in series. They will use convection for most of the time and are simple to operate. When properly sized for the local climate, the fans on a dry cooler should only be operated for no more than 20% of the time and only during the hottest time of day. They also require very low maintenance, so they do have lowest operation cost from any other heat rejection methods.
Ideally connected by local home installations / heating contractor which can help you to size and maintain your installation in the long term.
DCX Immersion Mining Rack Dual Loop with Drycooler

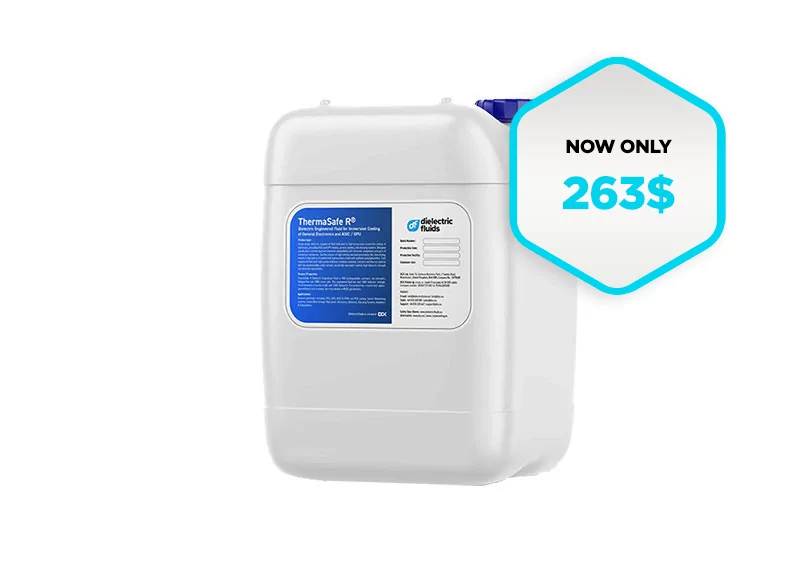

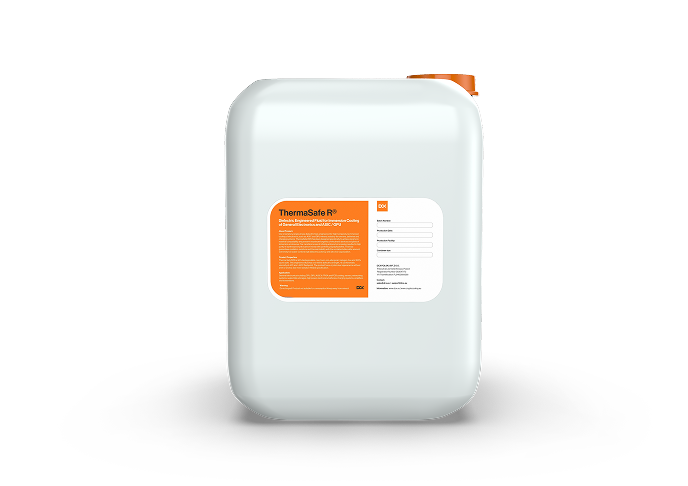

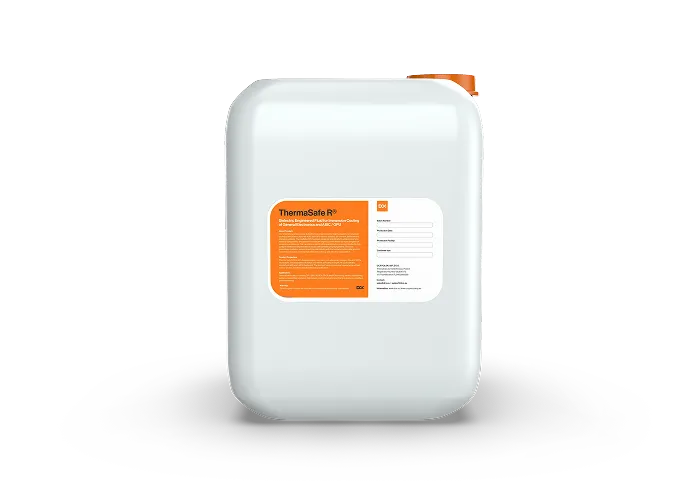

ThermaSafe™ Engineered Fluid
Dielectric, odorless, non-toxic, non-allergenic, long-life, eco friendly and safe HTF (Heat Transfer Fluid). Designed specifically for crypto mining operations, compatible with most ASIC, GPU and electronic equipment.
1600x better
HTF (Heat Transfer Fluid) has 1600x better thermal capacity than aircooling.
Fire protection
ThermaSafe HTF is biodegradable, not flammable per OSHA, and has zero GPW.
5 to 10Y product life
Long product lifespan for 5 up to 10 years of mining operation.
Our proprietary dielectric Heat Transfer Fluid is compatible with electronic components. compatible with most hardware will not degrade equipment as fluorochemical fluid or transformer oil, but improve lifespan of the miners. Single phase liquid transports 100% of heat outside of enclosure and protects devices from harsh environment and failure mechanisms including high temperature, humidity, vibration, corrosion, dust – major causes of electronic failures. Reduces thermal expansion cycling, maintains constant temperature,eliminates airborne contaminants and failures due to zinc and tin whisker growth. Replacing fans with fan emulating circuit means silent mining, less maintenance and more uptime.
Using medium with 1600 x better heat capacity and 4.5x better heat conductivity than air, you can pack your equipment in very dense manner saving space and
Additionally all miner components are cooled evenly so there are not hot spots which effect in fire risk. ThermaSafe™ works also as fire suppressant making sure you are protected even in remote mining operation.
We supply our customers with:
- Custom volumes in 20L containers
- 208L ThermaSafe™ Drum
- 1000L ThermaSafe™ IBC Caged Tote
- ThermaSafe™ pre-cleaners and solvents

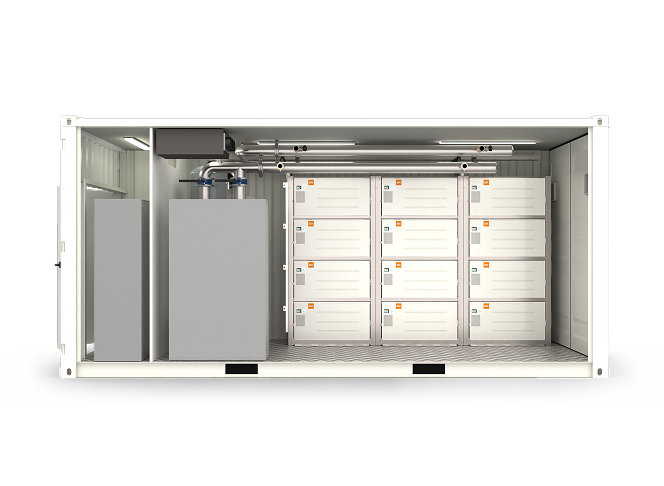

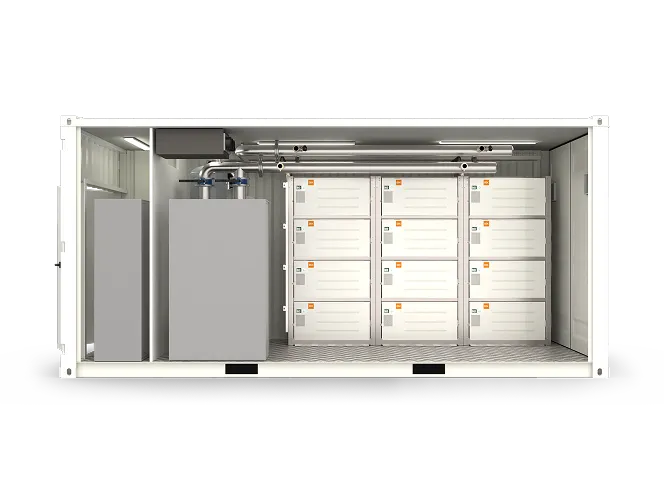

ILC Mobile Mining Container
Based on Universal ILC Enclosures stacked in our ILC Rack System provides unmatched density up to 2688 GPU cards or 560 standard asic miners in 20ft HC Container.
Fits 1000 miners
HODL’s up to 224 rigs with 2680 gpu’s or 560 standard S9/A9/Z9 asic miners
Mine everywhere
Mine close to standard, solar, hydro power plants exploiting excess or renewable energy.
Remote operation.
Engineered fluid protects your miners from harsh environment. Maintenance and operation without the risk.
Most of industry crypto mining endeavours brings significant challenges. Power usage, limited possibility for overclocking, low reliability, huge noise, enormous amount of heat that requires specific location with low ambient temp, large space to space out hot devices and monumental masses of air pushed through systems. Dust, vibrations and humidity degrade already low MTBF.
Small but dense Immersion Mobile Crypto Mining Units as this patent pending 20ft high cube containerised system with immersion liquid cooling technology is the answer for all the problems that bothers industry sized cryptocurrency mining farms.
Based on our Universal Immersion Mining Enclosures stacked in our Immersion Mining Rack System protect the electronic equipment from high temperature, humidity, dust and vibration – main causes of electronic equipment failures. Unmatched density of over 2688 GPU cards or 560 standard asic miners in 20ft container space allows to safely transport the system to convenient location with low power cost and convenient legal framework.
Immersion Mobile Mining Unit components:
- Custom equipped 20ft High Cube ISO Container
- Custom painting and identification.
- Internal rack system with 6+6 Immersion Mining Racks
- 3 level set of 36 Universal Immersion Mining Enclosures (21+21)

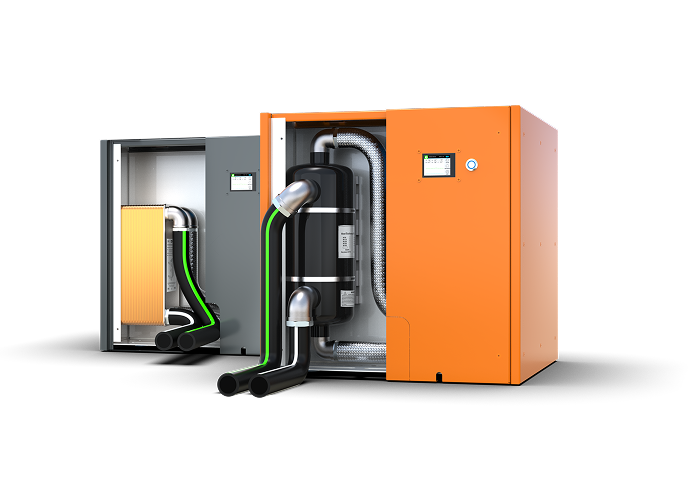

- CDU (Coolant Distribution Unit).
- 8 to 10 cubic meter of ThermaSafe™ Heat Transfer Fluid
- Power / Electrical wiring
- AR Monitoring & Management System
- CCTV & Access System
AR Monitoring & Management Software
Monitoring & management software for ILC Rack and Container systems. Monitors and records every aspect of your operation.
Power & Voltage
Monitors and logs Power and voltage of single or three-phase systems
Fluid Control
Monitoris & records fluid supply and return temperatures, flow and heat transfer capacity.
Alarms & Logs
Availability, and performance monitoring & recording. Alerts and reports for better management.
Remotely manage and monitor your crypto mining operation complementary to mining statistics & devices monitoring system.
AR Monitoring & Management software monitors every aspect of your Immersion Cooling System in Rack or Container scale. We monitor power, HTF fluid supply and return temperatures, flow, pressure, pump status, heat transfer level, alarms etc. User can easily locate & avoid any issues proactively. Application is available in hosted version, standalone installation and in mobile app for your convenience. Installed in minutes.
This custom-developed centralized system saves time and allows for hassle free, unified remote operation of your mining farm. Log & event management allows to create custom procedures as required by your specific mining location and application.
Features & Competitive Advantages
There is no better cooling system for crypto mining operation on the market. Period.
Supports all crypto mining hardware
Standard UNI Enclosure is able to sustain crypto mining hardware including gpu rigs and asic miners. Each Universal Immersion Mining Enclosure will accommodate 6 GPU rigs with up to 12 GPU each , or 18 standard S9 / G32-500 / A10 ASIC miners. That results in 72 gpu’s / 18 miners in one Immersion Mining Enclosure. Stacking up enclosures to 2/3 levels stack will effect in 216 GPUs or 54 miners in less than 1 square meter. That’s best you can get!
More performance. Smaller bills.
Numbers are impressive – 30% less electricity bills with PUE of 1.05 – most of the fans can be removed and system cools miners a long with PSU’s. Liquid cooling systems allows for overclocking and fine tuning with custom firmware which effects in 20% more hashrate with hardware and software optimisation. Additionally most users get up to 10% more shares from stability.
Silent, low profile mining
One aisc miner generates the noise of 75dB all day and night. With small farm of 2-4 rigs or asic miners its unbearable 24/7. Specific location is needed. Miners must be spaced out and placed in relatively cold place. Air must be filtered and vented which means expenditures for fans, air conditioning, location, filters. With our immersion liquid cooling you will be able mine quietly from your own place or from area with most convenient power. Placing 72 GPUs or 18 asic miners in the box with dimensions less than 70x60x60 solves all the problems. Simple as that.
Sustainable Heat Reuse
Sustainability is the key. Proprietary engineered fluid extracts 100% of the heat from ICT or Blockchain infrastructure. Hot 60*C/140*F liquid can be #reused for local community or office heating. This Containerised mobile system can be located close to solar or hydroelectric or biomass power plants to use excess energy or waste/biomass and power up the infrastructure with PUE close to 1.01 and virtually 0 carbon footprint.
Works everywhere!
Our systems are designed and built to operate at remote locations near energy sources such as solar plants, wind turbines or hydropower plants. Immersion cooling isolates equipment completely from outside air. System works flawlessly even in hot climate with high ambient temperatures being real alternative for remote mining. We eliminated all mechanical parts that require frequent replacement. Only active subsystems: pumps, have industrial grade MTBF.
Accessing cheap or excess energy.
From Universal Immersion Mining Enclosure through Immersion Mining Rack to Mobile Mining Container – you can operate at remote locations and use low-priced energy directly at the source. This allows us to position or migrate your mining farm in regions with a competitive supply or overcapacity of energy – negotiate smart with green energy providers worldwide: solar plants, wind turbines or hydropower plants.
Cutting edge immersion liquid cooling
We have designed, developed and tested a radically new, self-regulating liquid cooling system specifically designed for the blockchain mining industry. This patent-pending cooling solution achieves a best-in-class energy efficiency with a consumption of only ~1% of the system’s total energy consumption.
Less repairs, more uptime!
Engineered fluid is compatible with 95% of the mining systems we were able to check for material compatibility. This system will guarantee improved MTBF through the whole lifecycle of the mining infrastructure. Systems immersed in the liquid are completely protected from high temperature, humidity, dust and vibration. All that results in immediate increase in miners MTBF and elimination of a majority of scheduled maintenance.
Plug and Mine
Ready to use, delivered with everything required, “plug and mine” solution for every individual that goes pro with 2-3-4 miners or mining rigs. Immersion Mining Enclosure is also main component for scale up solutions with 10-20-40 enclosures in our custom racks. Everything is included whether it is single Immersion Enclosure or whole rack system. It will work flawlessly even in hot climate with high ambient temperature.
Unprecedented density and mobility!
MMU / MCU may be equipped with up to 72 Universal Immersion Mining Enclosures. Each Universal Enclosure will accommodate 6 GPU rigs with up to 12 GPU each, or 25 standard S9 or 8 X S17 / S19 miners. This provides biggest density in industry without losing ICO compliance – you are still able to transport your container everywhere you need.
