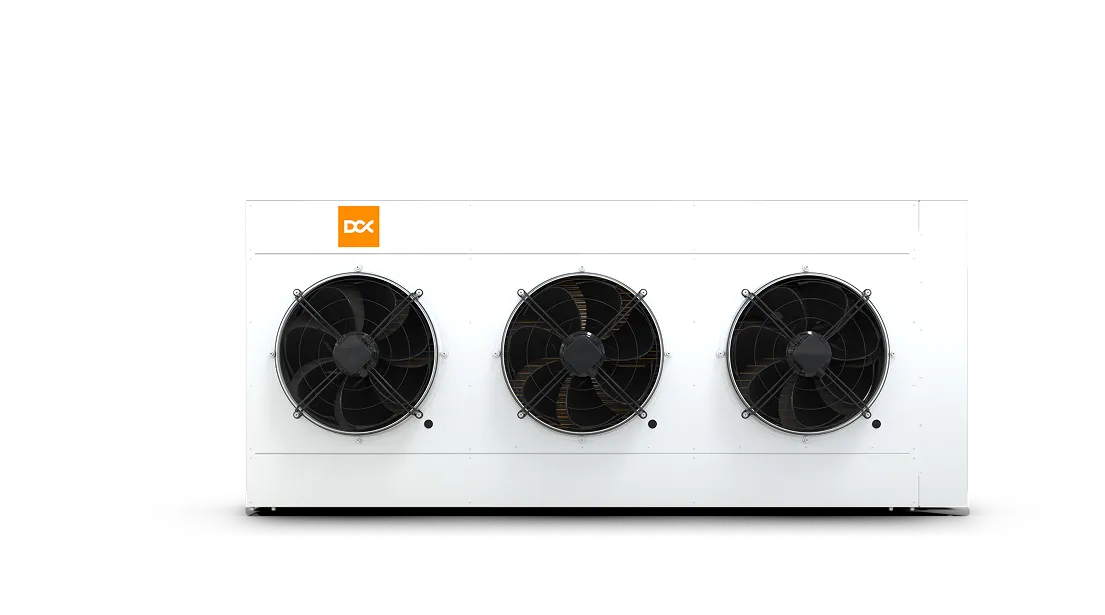

DCX 120kW
Dry Cooler
A powerful dry cooler, capable of 120kW of heat transfer capacity and serving an entire immersion rack system.
A powerful dry cooler, capable of 120kW of heat transfer capacity and serving an entire immersion rack system.
Operates quietly, even at full load, with fan noise levels as low as 56 dB - perfect for residential or low-noise environments.
Delivered pre-configured for immersion systems, ready to run with no additional plumbing or setup needed.
Adaptive fan control cuts power use by up to 40% in moderate conditions, reducing operational costs.
Delivers up to 120 kW of cooling per rack and scales easily with multiple tanks in one footprint.
Engineered for DCX immersion rack systems, this high-capacity dry cooler delivers over 120 kW of heat rejection at 35°C ambient and more than 140 kW in cooler climates (20-25°C). Its compact footprint (200 × 100 × 500 cm) supports both vertical and tabletop installation, providing over 200 m² of heat exchange surface. Equipped with three 500 mm fans delivering 58-68 dB(A), it offers strong thermal performance with controlled noise levels. Power draw ranges from 1.7-2.2 kW in high-performance mode, with up to 40% lower consumption in moderate operating conditions.
Application
Immersion od Direct Chip cooling systems heat rejection
Cooling capacity
(Ambient temp=35°C)
120 kW
Cooling capacity
(Ambient temp=25°C)
140 kW
Dimensions
2400(W) x 1400(D) x 500(H) mm
Fans
3 x 500 mm
Noise level [dB(A)]
58-68 dB(A)
Max power consumption
2.2 kW
Power Standard
400V/3Ph/50hz (1.4-0.9A 720-550W) or 460V/3ph/60hz (1.64A 1060W)
Fittings
2" / DN50
Fluid temperature In / Out
60 / 40 °C
Transport weight
250 kg | 551 lb
Nominal volume flow
5.2 mᶾ/h
Pressure drop
0.39 bar
This deployment showcases a DCX 120 kW Dry Cooler integrated into a closed-loop immersion system with three PRO9 tanks. Installed outdoors with an integrated pump station, it circulates heated dielectric fluid to the dry cooler, rejecting heat to ambient air with zero water use.
This configuration creates a fully self-contained and sustainable architecture, eliminating evaporative cooling and the need for municipal water. Compact and scalable, it supports high-density workloads and maintains stable thermal performance even under full load and in warm climates, delivering maximum uptime with minimal maintenance.
