DCX 1MW
Dry Cooler

1MW dry cooler

Powerful solution delivers exceptional cooling capacity and unparalleled reliability, empowering you to operate efficiently and sustainably.

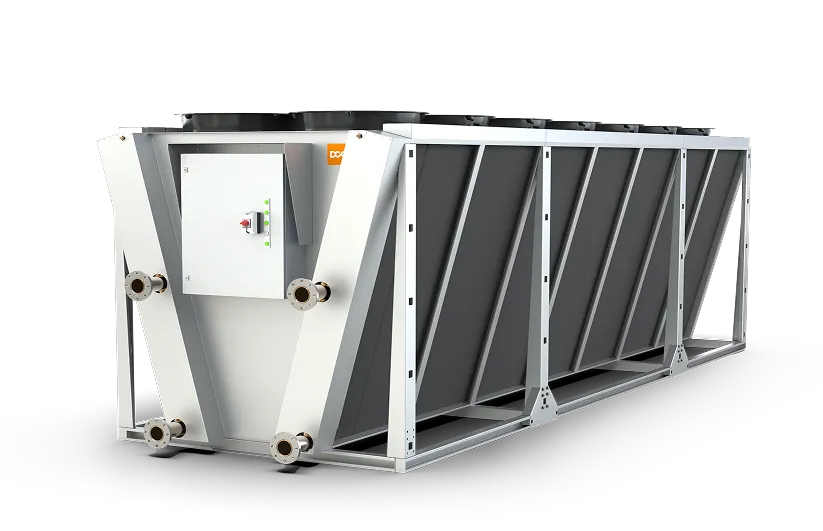

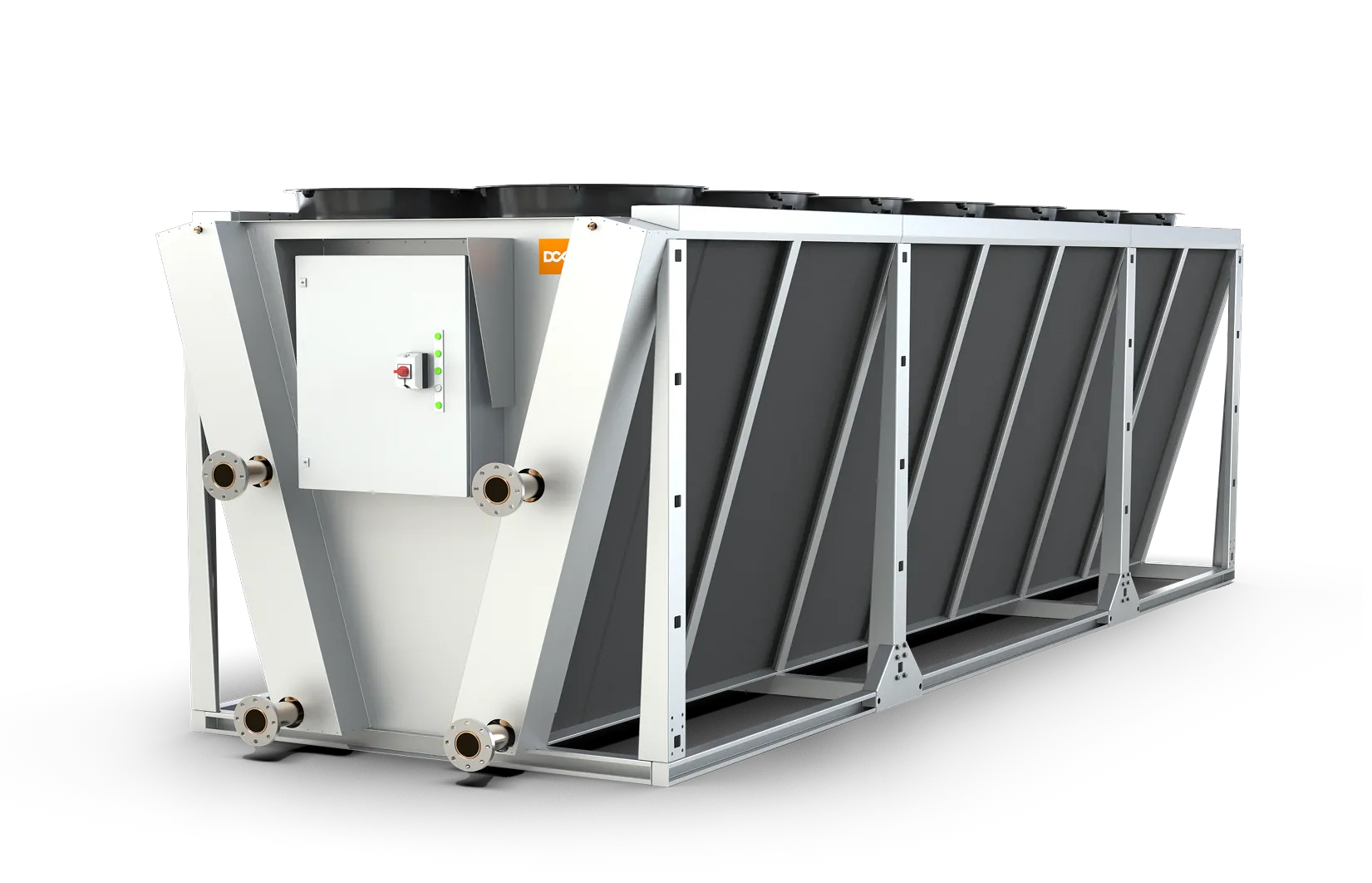

A picture of a DCX 1MW Dry Cooler

DCX 1MW in a nutshell

Ideally sized for home mining operations

King of Density

Host 8 Antminers S21, Canaan Avalon 1566i, or any other similar sized miner for maximum crypto yield.

Powerful Cooling Capacity

Up to 40kW of cooling capacity per enclosure and up to 120 kW of cooling per rack.

Perfectly scalable operations

With only 1 m² needed for each tank or rack system, it is one of the most scalable solutions on the market.

Designed for extreme workloads

Equipped with robust industrial heat exchanger, DCX PRO 9 always keeps your operation cool and efficient.

Order now

All you have  to know about performance

This is the revolutionary DCX 1MW Immersion Optimized DryCooler, designed to conquer the most demanding heat transfer challenges faced by large-scale immersion farms. This powerful solution delivers exceptional cooling capacity and unparalleled reliability, empowering you to operate efficiently and sustainably. Delivers 1MW of heat rejection in 35°C (95°F) ambient air temperature, ensuring optimal cooling performance for even the most densely packed immersion racks. This compact design saves space and allows for flexible placement within your data center. Rugged and reliable construction withstands harsh environments, including low temperatures, heavy snow, strong winds, high humidity, and more. Durable coating protects the unit from corrosion and ensures long-lasting performance. Minimum footprint saves valuable space within your data center. 20ft container sized for 1.2MW capacity enables efficient space usage. Air-based cooling eliminates the need for water, reducing your environmental footprint. High-quality fans and controllers ensure efficient operation and minimize energy consumption. Choose from EU-produced or US-made units to suit your specific needs.

Application

Immersion od Direct Chip cooling systems heat rejection

Cooling capacity
(Ambient temp=35°C)

1 Megawatt

Dimensions

7000(W) x 2620(D) x 2300(H) mm

Fans

12 x 800 mm

Max power consumption

32.4 kW

Power Standard

400V/3Ph/50hz

Fittings

4" / DN100

Fluid temperature In / Out

60 / 40 °C

Nominal volume flow

26.9 mᶾ/hf

Pressure drop

0.35 bar

Strategically designed layout,
allowing for flexible placement and maximizing valuable floor space.

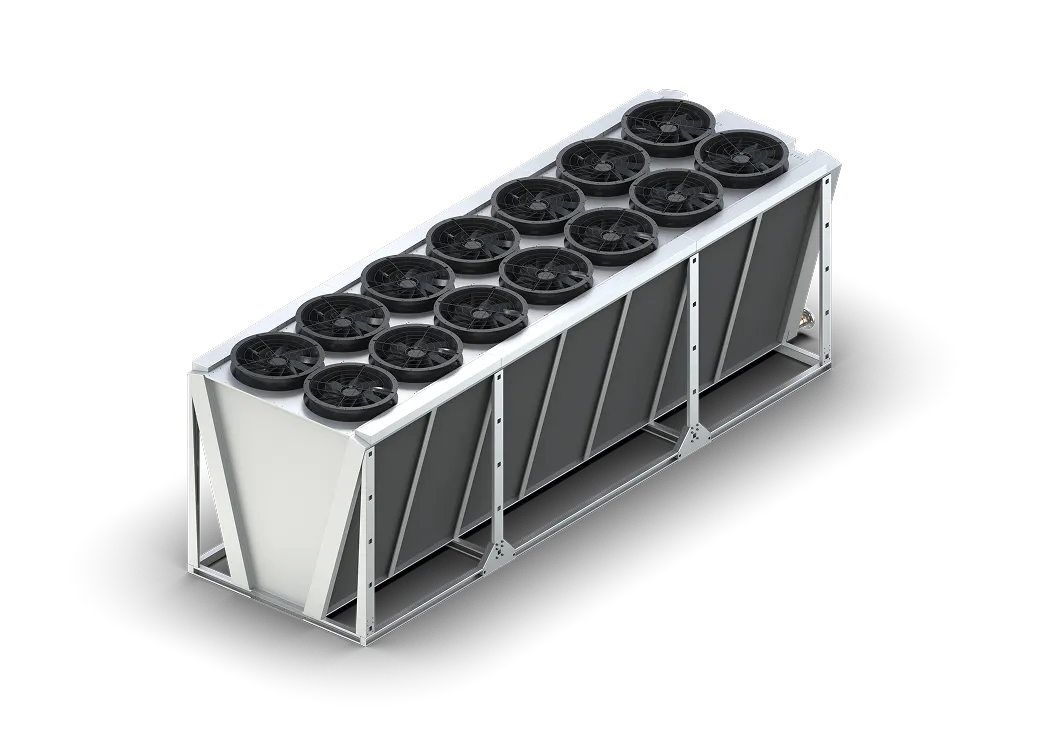

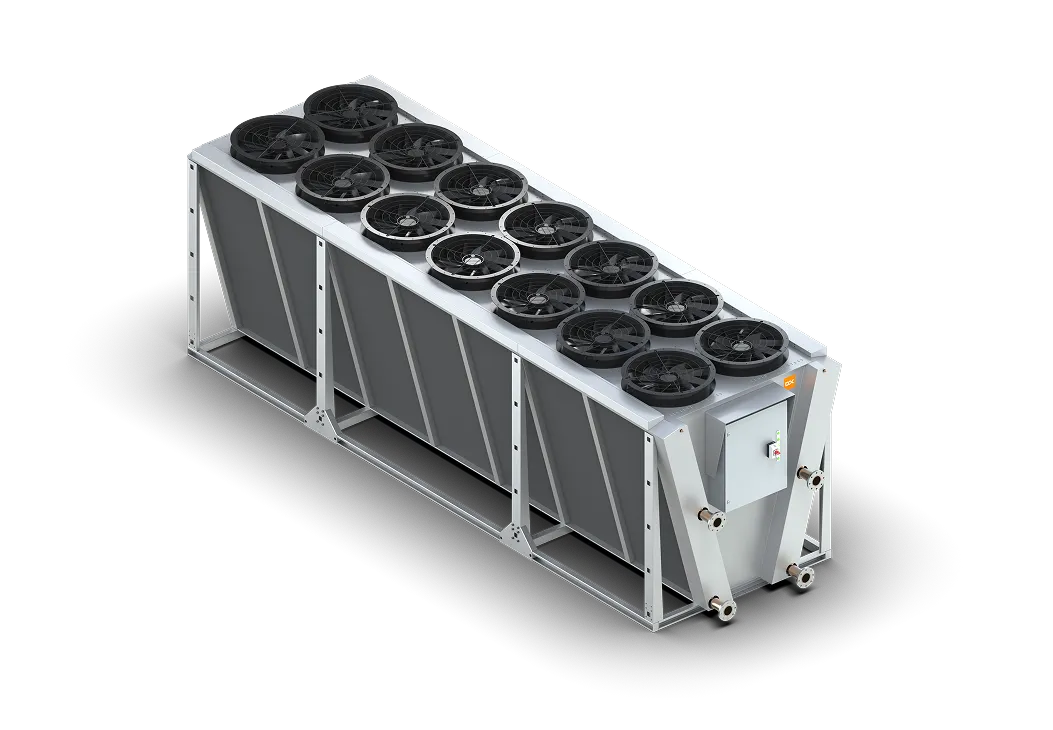

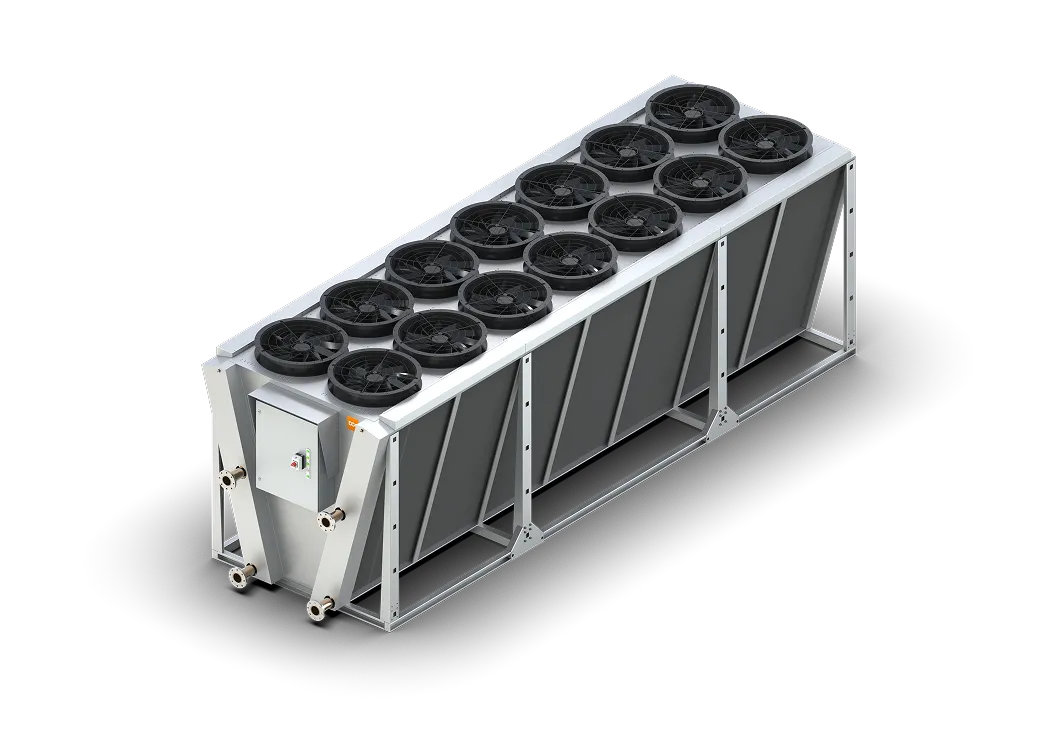

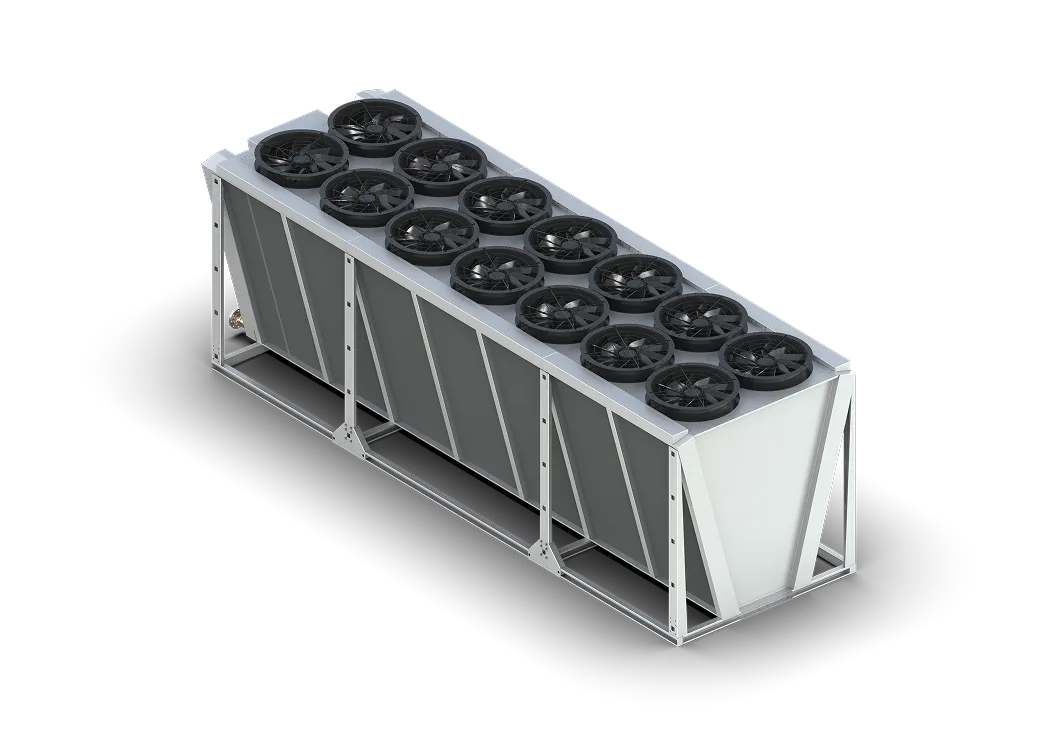

1MW dry cooler
1MW dry cooler
1MW dry cooler
1MW dry cooler

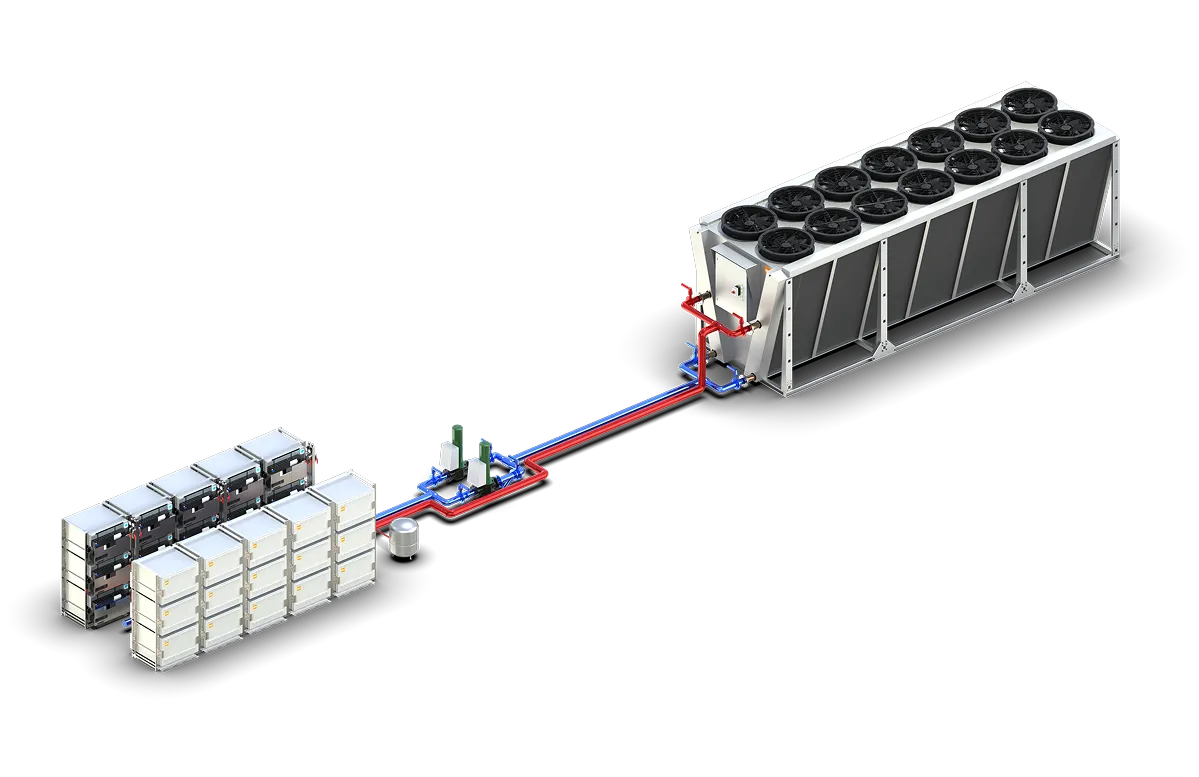

Example Deployment

Designed to handle medium and large-scale deployments while occupying no more than a single square meter per system. It is the ultimate solution for mining farms and high-density data centers looking to boost productivity and reduce costs.

Example deployment of large scale liquid cooling

Tell us about
your project

Would you like to order a specific product, or maybe you have an entire project at hand? In order to provide you with the best experience possible, we kindly ask you to include the following infromation in your message:

  • Type and number of ASIC miners or GPUs.
  • Expected miners power.
  • Heat rejection plan - Dry Coolers, or heat reuse?
  • Dry cooler or connection to local water loop.
  • City / country of your operation – we deliver globally.
  • expected performance in your maximum ambient temperature and to quote shipping cost
