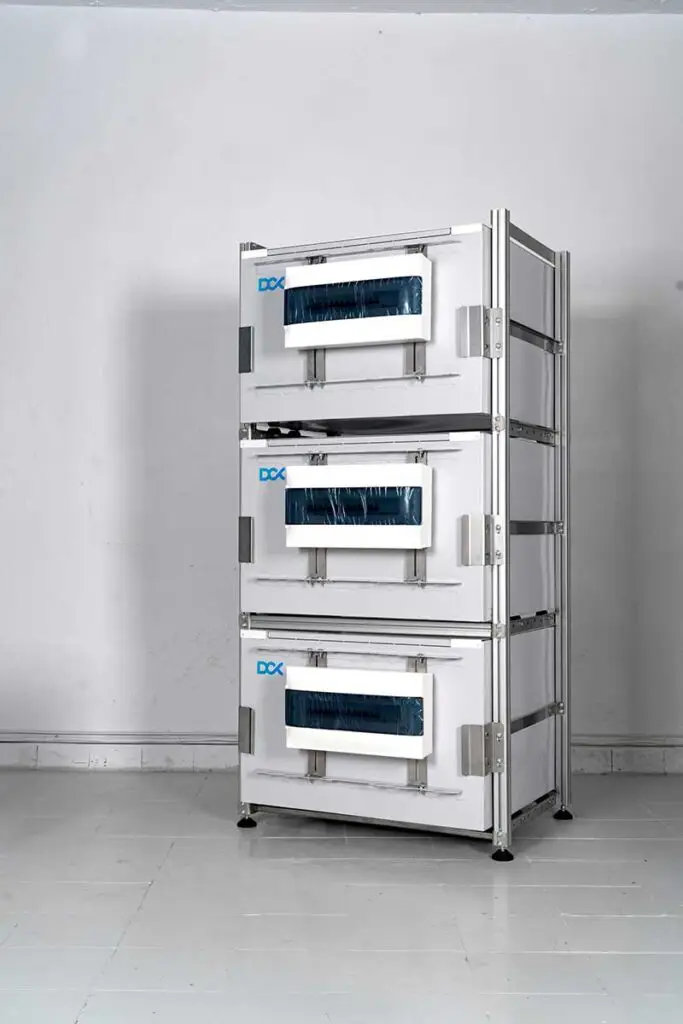

Immersion Mining Rack System compatible with Universal Immersion Mining Enclosures is an easy way to mine silently in the most convenient place with low-cost energy access. This vertical system is designed to solve most of the existing problems in the mining industry: special space for mining, energy usage, performance, heat, noise, electronic equipment failures, fire protection, etc.

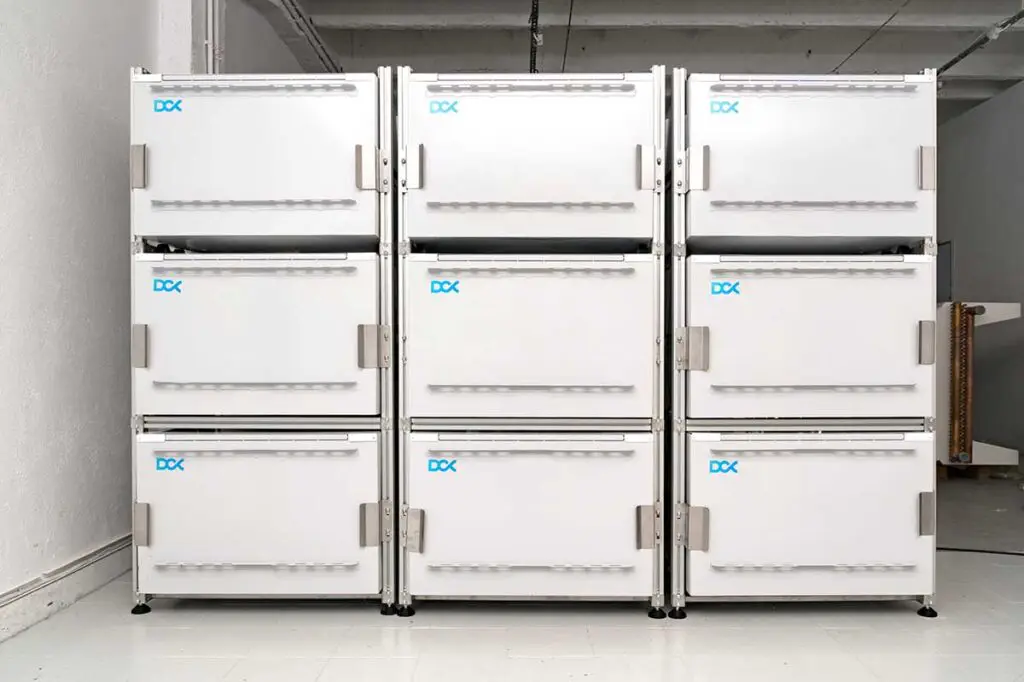

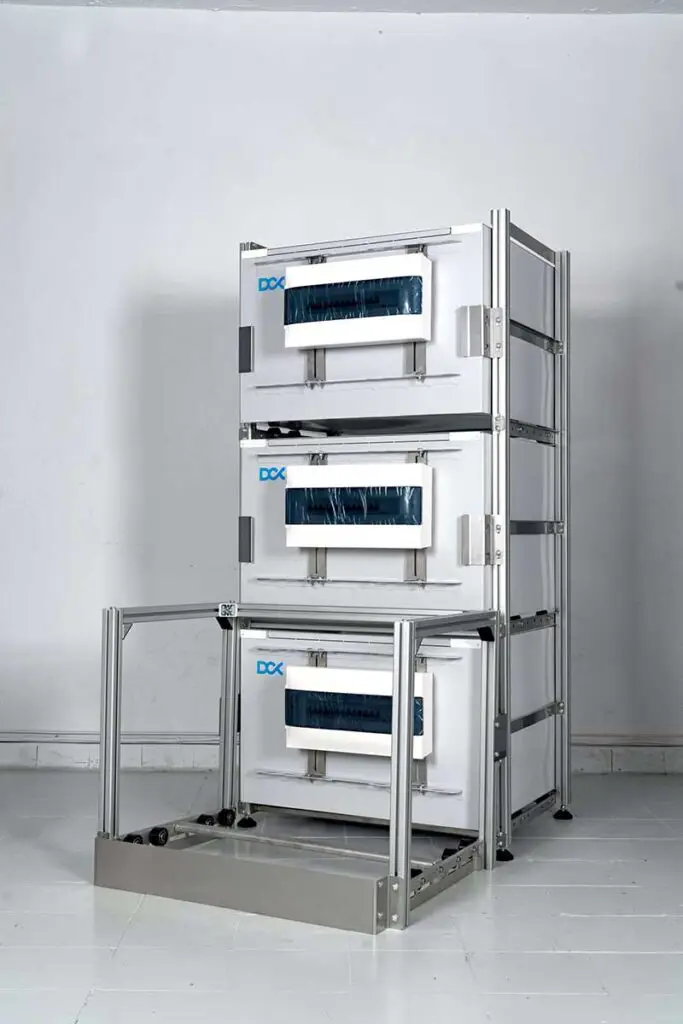

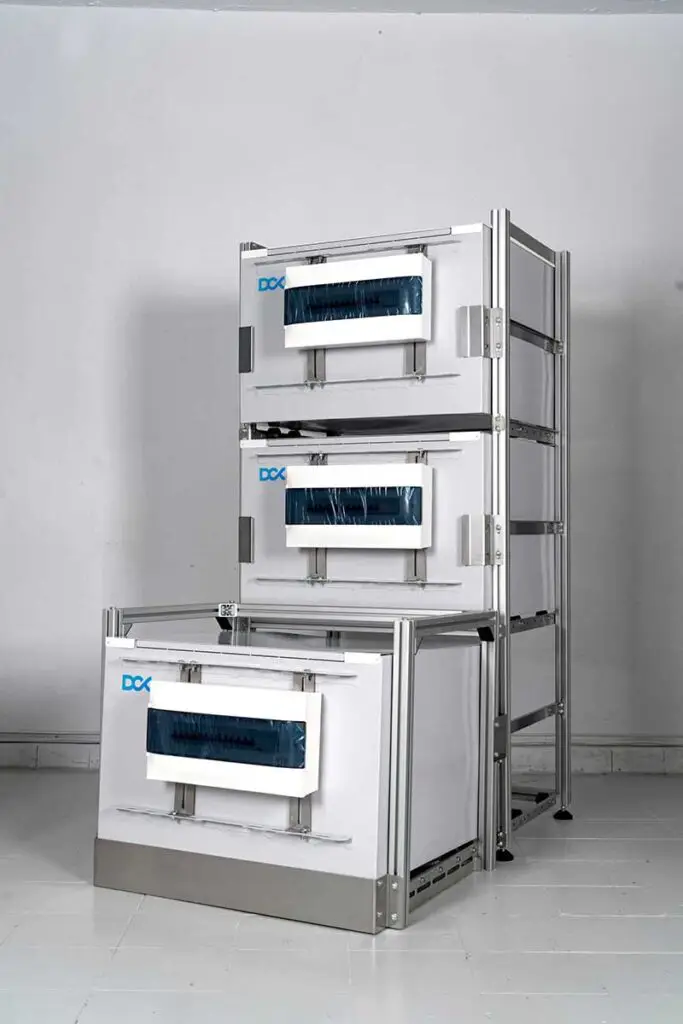

With a low 1 sq. meter footprint, 180 cm height, and up to 120kW capacity, Immersion Mining Rack is the densest immersion system in the world. The rack can be placed virtually everywhere, regardless of external conditions. The system allows for silent mining with 40dB virtually silent pumps. Retractable Immersion Mining Enclosures provide easy access to mining equipment. Basic Immersion Mining Rack setup allows users to connect enclosures directly to a facility water loop. The system can be complemented with heat rejection components – 120kW or 240kW Immersion Optimized Dry coolers,  rack manifold, pumping system, tubing, and all other components to create a high-performance, closed heat rejection loop. We ship our racks also with a DCX Monitor – a set of sensors to control temperature and required amount of ThermaSafe R engineered heat transfer fluid.

The rack system can be utilized as a component of scale-out systems – Immersion Mining Containers or Facility installation, creating a multi MW and scalable mining operation.

ICP15 Adaptive Cooling / Pumping System

ICP 15 is an Industrial dry cooler combined with an integrated pump and adaptive fan control. Provides 15.87 kW of Heat Transfer at 35 °C and 21 kW of Heat Transfer at 25 °C. A complete solution, replacing the dry cooler and a separate pump group. Over 3 times more effective than simple machine oil coolers. Equipped with an adaptive fan controller which controls the speed of the fans, so they operate as silent as possible. ICP 15 may be combined with a heat reuse loop and is ideally sized for home mining operations.

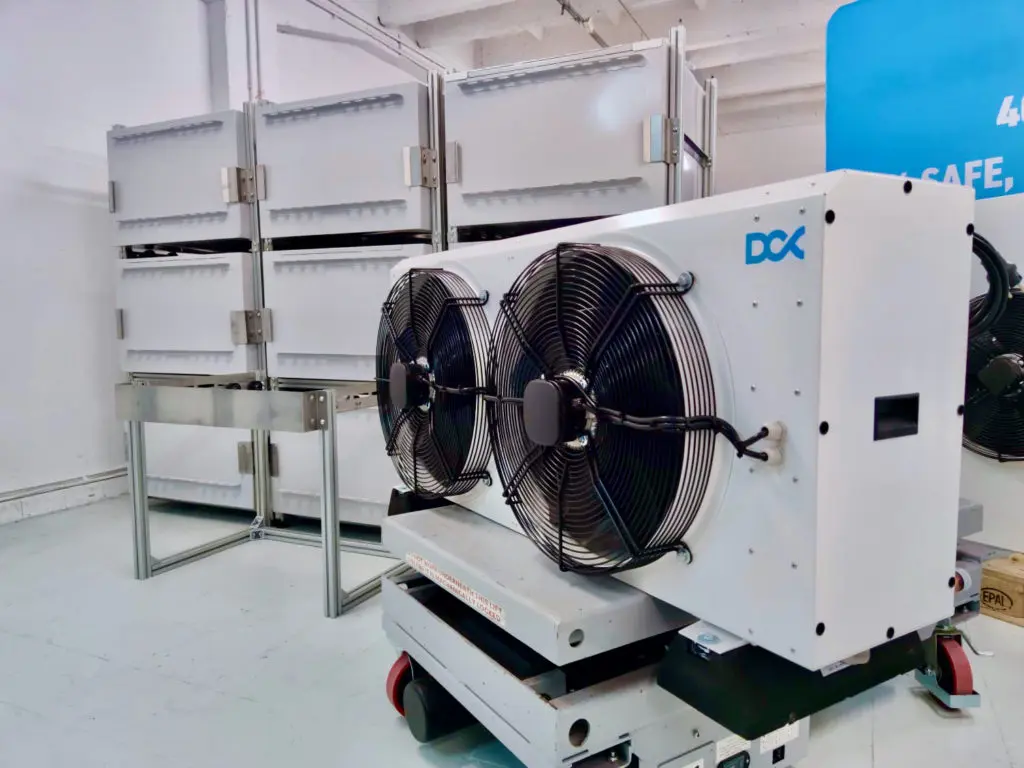

ICP40 – 40kW Integrated Cooling / Pumping unit:

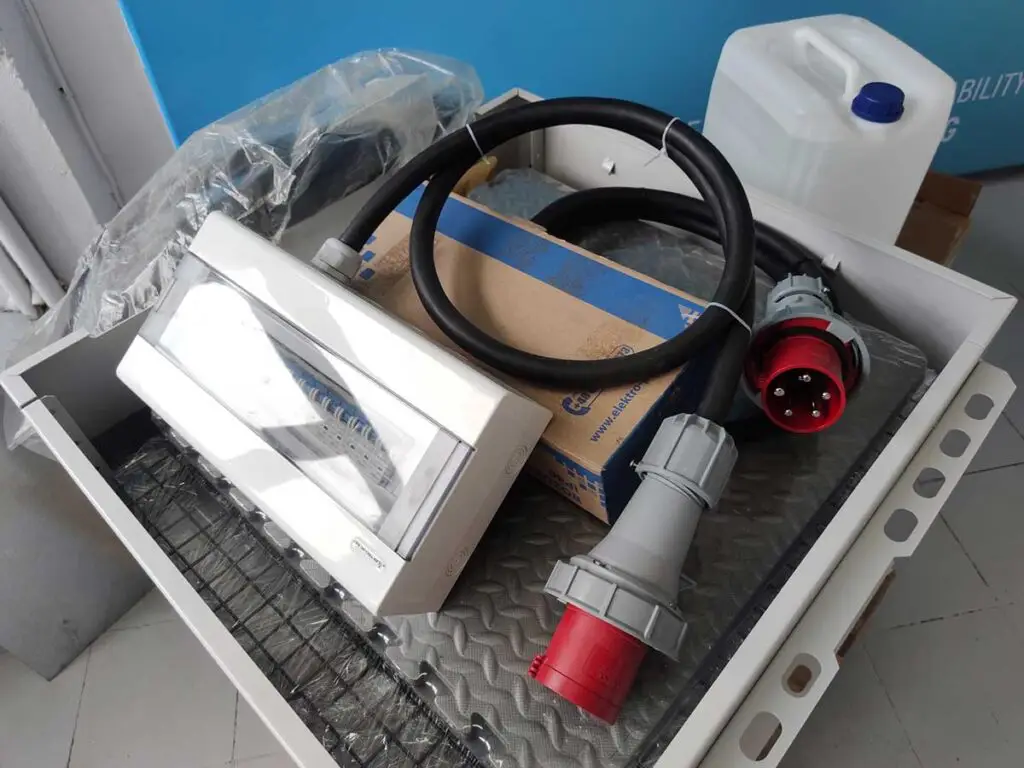

Immersion optimized dry cooler for the single immersion enclosure, combined with an integrated pump unit. Delivered with all the needed components to start an operation. Equipped with 160 lpm / 42 GPM continuous duty pump. Dual 500 mm fan unit with dimensions 140 x 70 x 40 cm. Over 40kW of heat transfer in 35*C ambient and 50kW of heat transfer for average 25*C outside temperature. Standard 57-69dB fans. Maximum power is 600W, the average is 400W, in a moderate climate.

120 kW Dry cooler for Immersion Rack:

Immersion optimized dry cooler for the Immersion Rack System. Space-saving standing or table-top platform with dimensions of 200 x 100 x 500 cm. Over 200 square meters of heat exchange area. Three standard 56-68 dB 500 mm fans. Provides 120kW of heat transfer in 35*C ambient and over 140kW of heat transfer for average 20-25*C air temperature. Maximum power is 1.7-2.2kW (4.4A) for high-performance mode and up to 40% less for average moderate temperature. Optional components, upgrades, and accessories are available.

240 kW Dry cooler for Immersion Farm:

Immersion optimized dry cooler for the multiple Immersion Racks. A space-saving V-shaped platform with dimensions of 230 x 160 x 180 cm. Almost 500 square meters of heat exchange area. Dual standard 56 dB 800 mm fans. Provides 240kW of heat transfer in 35*C ambient and over 280kW of heat transfer for average 20-25*C air temperature. Maximum power is 3.6kW (4.4A) for high-performance mode and up to 30% less for average moderate temperature. Optional components, upgrades, and accessories are available. Requires a pumping system.

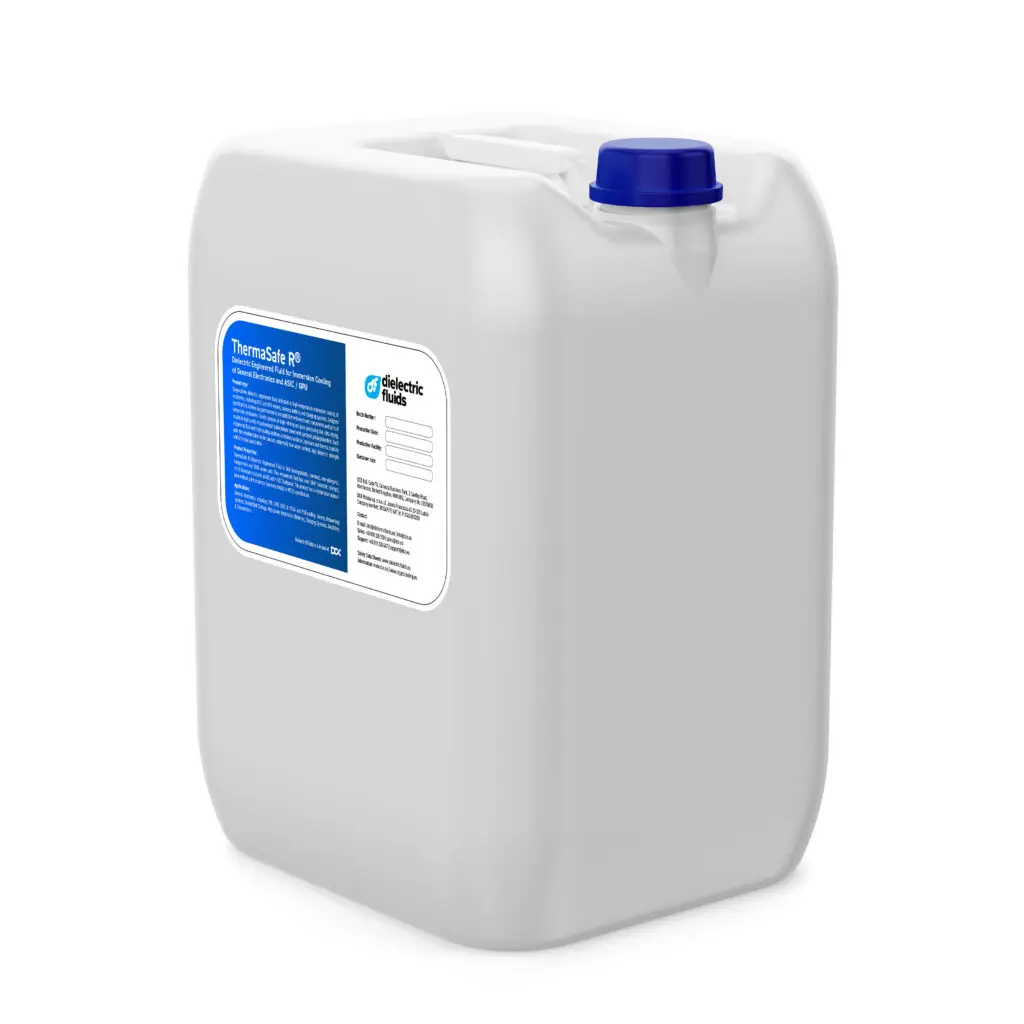

The best dielectric coolant on the market. Fully synthetic engineered fluid with 2x better properties than any competitive liquid. Over 60kV dielectric strength, 5 cSt viscosity, 160C flashpoint. No tint, no aroma, non-toxic, non-allergenic, long-life, eco friendly, crystal clear, halogen-free and safe. Designed specifically for electronics cooling, compatible with ASIC, GPUs, servers, and electronic equipment. Over 20y product lifetime. This new liquid for the immersive cooling of electronics and semiconductors with the most competitive price/value factor available. Unique chemistry of this engineered fluid allows it to act as a dielectric coolant, removing heat directly from electronic components. Not only does this liquid have very low viscosity, but as a single-phase liquid, it does not require any of the complex systems necessary to evaporate and condense dual-phase fluids.

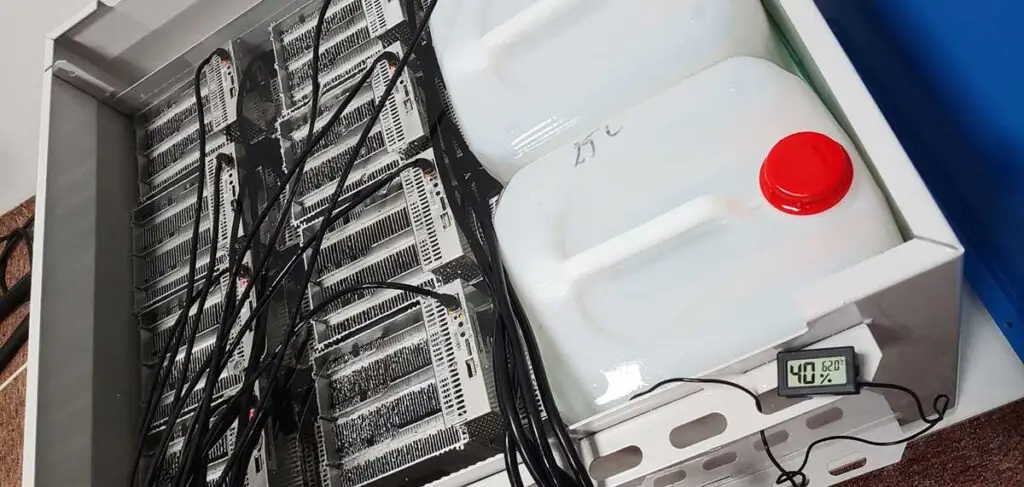

The key features of this liquid are low viscosity, high – over 60kV – dielectric strength, high oxidation and moisture stability, as well as great price/value factor and extremely low pour point of -45°C. Our proprietary dielectric Heat Transfer Fluid is compatible with electronic components and will not degrade equipment as fluorochemical fluid or transformer oil, but will definitely improve lifespan of your miners. Single-phase liquid transports 100% of heat outside of the enclosure and protects devices from harsh environment and prevents mechanisms from failure caused by high temperature, humidity, vibration, corrosion, dust – major causes of electric failures. It also reduces thermal expansion cycling, maintains stable temperature, eliminates airborne contaminants and failures due to zinc and tin whisker growth. Replacing fans with fan emulating circuit means silent mining, less maintenance, and more uptime. We supply our customers with standard volumes in 22L containers, 208L ThermaSafe™ Drums, 1000L ThermaSafe™ IBC Caged Totes, ThermaSafe™ pre-cleaners and solvents.

Using medium with 1600 x better heat capacity and 4.5x better heat conductivity than air, you can pack your equipment in a very dense manner saving space and resign from fans and air handling. Additionally, all miner components are cooled evenly so there are no hot spots that increase a risk of fire. ThermaSafe R™ also works as a fire suppressant, making sure that you are protected even during remote mining operations.
